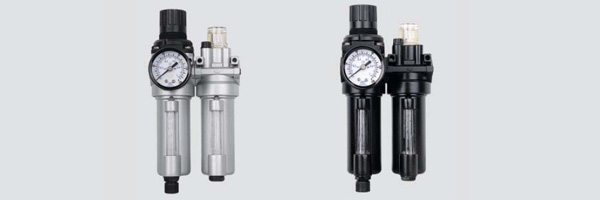

C Series Filter,Regulator&Lubricator Combination |
|  |
 |
Add to cart |
|

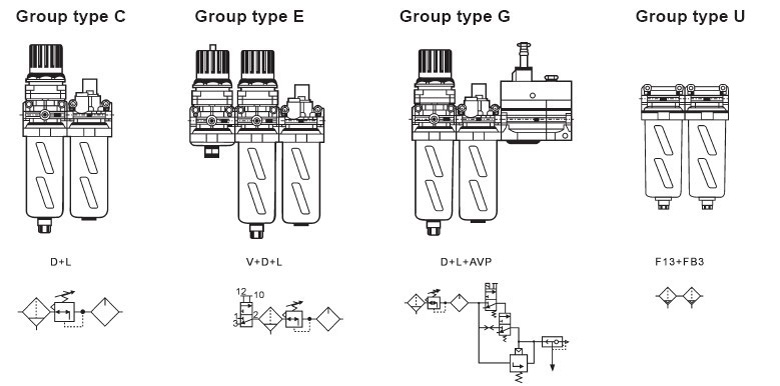

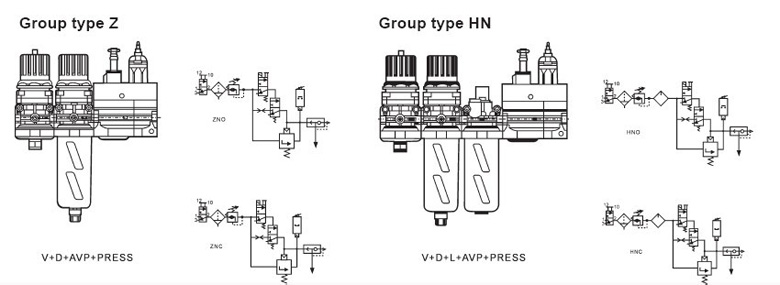

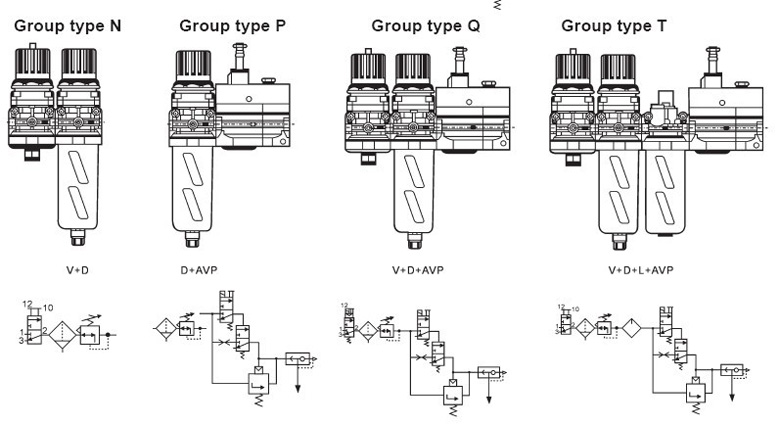

Symbol |
|
|

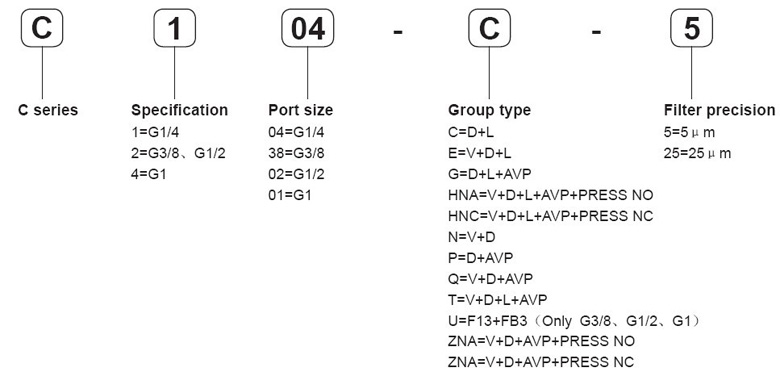

C Series fi lter, regulator & lubricator combination code
|
|
D
|
Regulator & fi lter combination,0~1MPa semi-auto drain,fi lter precision 5μm or 25μm
|
AVP
|
Eletricity control soft start valve
|
|
Pressure switch (NC or NO)
|
PRESS
|
Pressure switch (NC or NO)
|
|
V
|
Two-position three-way separate valve
|
F13
|
Filter auto drain(only G3/8,G1/2,G1),filter precision 5μm or 25μm
|
|
L
|
Lubricator
|
FB3
|
Gather filter auto drain(only G3/8,G1/2,G1)
|
|
Specifi cations
| Structure type |
Compact type
|
| Material |
Al-alloy, Brass, Nylon, NBR
|
| Port size |
G1/4,G3/8,G1/2,G1
|
| Installation type |
Upright place, board connection or wall installation
|
| Operating temperature |
0~60oC (1MPa)
|
| Surface coat |
Painted
|
|
|
