| Mode |

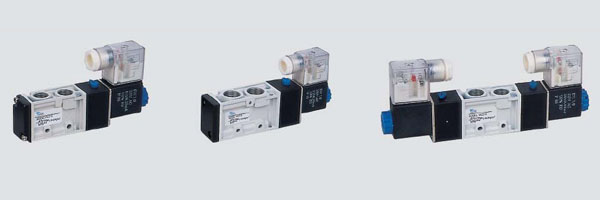

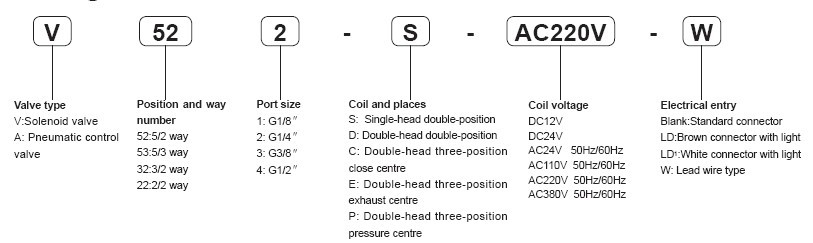

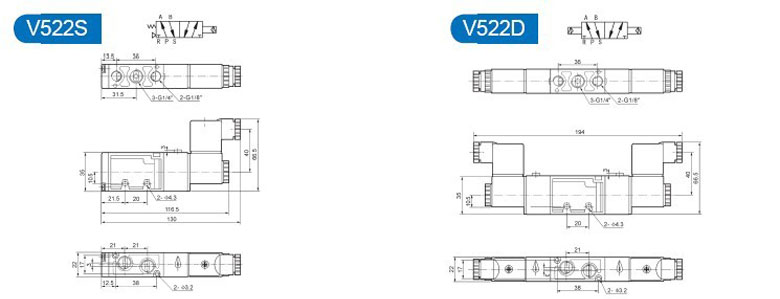

V522S
|
V522D
|
V532C(E/P)
|

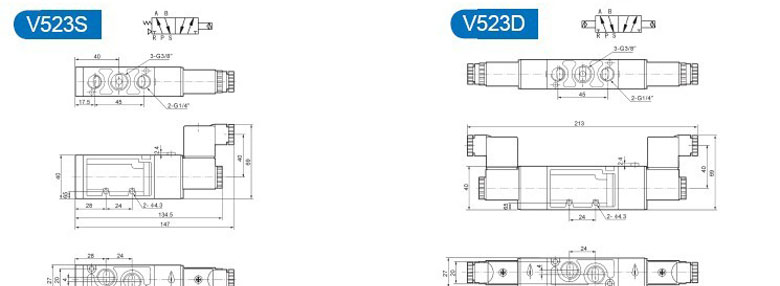

V523S
|
V523D
|
V533C(E/P)
|

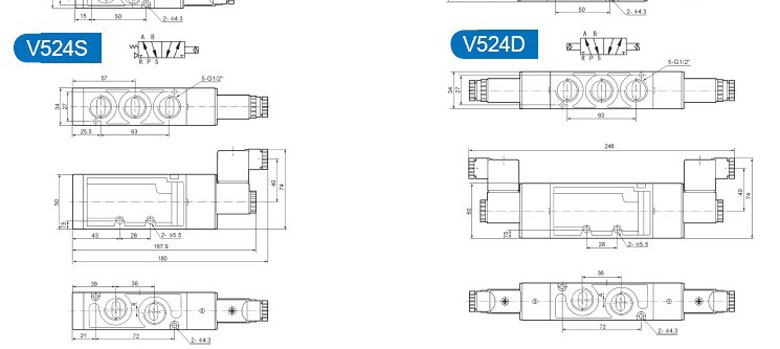

V524S
|
V524D
|
V534C(E/P)
|
|
A522S
|
A522D
|
A532C(E/P)
|
A523S
|
A523D
|
A533C(E/P)
|
A524S
|
A524D
|
A534C(E/P)
|
|
Position and way NO.
|
5/2 way
|
5/3 way
|
5/2 way
|
5/3 way
|
5/2 way
|
5/3 way
|
|
Effective area
|
14mm2(CV=0.78)
|
12mm2(CV=0.67)
|
25mm2(CV=1.40)
|
18mm2(CV=1.00)
|
50mm2(CV=2.79)
|
30mm2(CV=1.68)
|
|
Fluid
|
40 micron fi ltered air
|
|
Operation
|
Inside pilot type
|
|
Operating pressure
|
0.15~0.8MPa
|
|
Proof pressure
|
1.2MPa
|
|
Operating temperature
|
5~50oC
|
|
Allowable voltage
|
±10% of rated voltage
|
|
Power consumption
|
AC: 4.5VA DC: 2.5W
|
|
Coil insulation & protection grade
|
Class F. IP65
|
|
Electrical entry
|
Lead wire or connector type
|
|
Highest action frequency
|
5 cycle / second
|
|
Shortest excitation time
|
0.05 second
|
|
|
