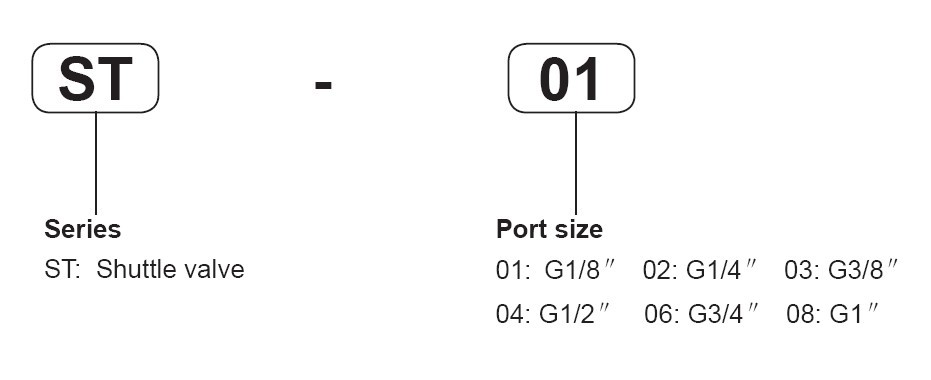

| Model |

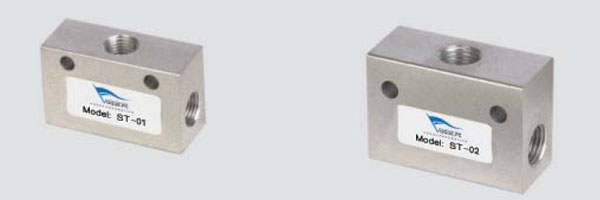

ST-01
|
ST-02
|
ST-03
|
ST-04
|
ST-06
|
ST-08
|
| Fluid |
Air
|
| Effective area |
7.5mm2
|
21mm2
|
40mm2
|
60mm2
|
110mm2
|
190mm2
|
| Port size |
G1/8″
|
G1/4″
|
G3/8″
|
G1/2″
|
G3/4″
|
G1″
|
| Operating pressure |
0~1.0MPa
|
| Operating temperature |
0~60oC
|

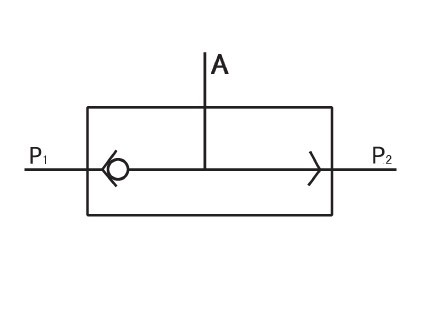

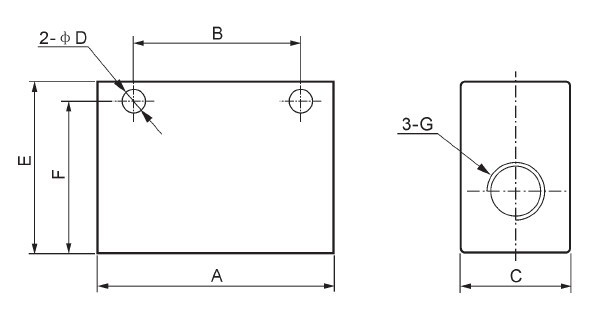

Dimensions
.jpg) |
|
Model / Symbol
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
|
ST-01
|
40
|
24
|
16
|
4.5
|
25
|
20.5
|
G1/8″
|
|
ST-02
|
50
|
35
|
22
|
5.5
|
35
|
25
|
G1/4″
|
|
ST-03
|
75
|
48
|
30
|
7
|
50
|
42
|
G3/8″
|
|
ST-04
|
75
|
48
|
30
|
7
|
50
|
42
|
G1/2″
|
|
ST-06
|
110
|
72
|
40
|
7
|
70
|
58
|
G3/4″
|
|
ST-08
|
110
|
72
|
40
|
7
|
70
|
58
|
G1″
|
|
|
|
