Home > Products
Cylinder

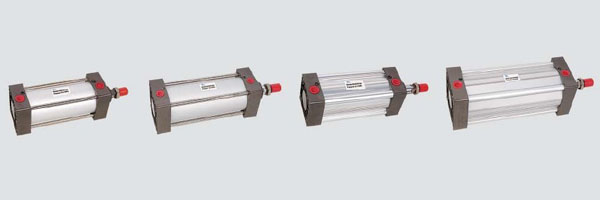

SC Series Standard Cylinder
Add to cart
Symbol

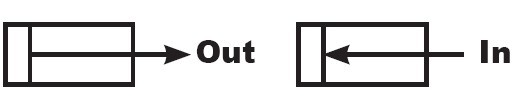

UnitN

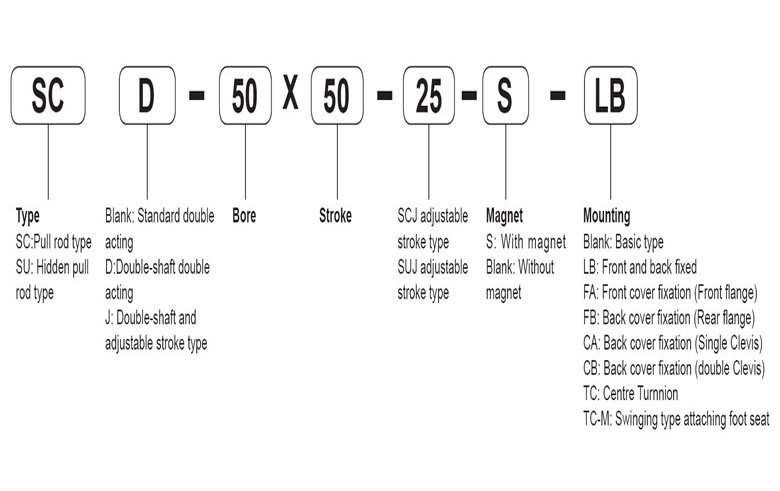

Ordering code



Specifications

  Bore (mm)
32
40
50
63
80
100
125
160
200
  Operation
Double acting
  Fluid
Air
  Mounting
Basic FA FB CA CB LB TC TC-M
  Operating pressure
1.0~9.0 Kgf/cm2
  Proof pressure
13.5 Kgf/cm2
  Operating temperature
0~70oC
  Operating piston speed
50~800 mm/s
  Cushioning
Adjustable cushioning
  Cushioning stroke
20
26
45
  Port size
1/8″
1/4″
3/8″
G1/2″
G3/4″

Stroke

Bore(mm)
Standard stroke
Max. stroke
Allowable
stroke
32
 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500
1000
2000
40
 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800
1200
2000
50
 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000
1200
2000
63
 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000
1500
2000
80
 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000
1500
2000
100
 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000
1500
2000
125
 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000
1500
2000
160
 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000
1500
2000
200
 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000
1500
2000

 Theoretical force

Bore size
32
4
50
63
8
100
125
160
200
Rod diameter
12
16
20
20
25
25
32
40
40
Operation
Double acting
Double acting
Double acting
Double acting
Double acting
Double acting
Double acting
Double acting
Double acting
Out
In
Out
In
Out
In
Out
In
Out
In
Out
In
Out
In
Out
In
Out
In
Piston
area(mm2)
804
690
1256
1055
1963
1649
3117
2803
5026
4536
7853
7362
12270
11460
20100
18840
31420
30140
Operating
pressure
(MPa)
0.1
80.4
69
125.6
105.5
196.3
164.9
311.7
280.3
502.6
453.6
785.3
736.2
1227
1146
2010
1884
3142
3014.0
0.2
160.8
138
251.2
211
392.6
329.8
623.4
560.6
1005.2
907.2
1570.6
1472.4
2454
2292
4020
3768
6284
6028.0
.3
241.2
207
376.8
316.5
588.9
494.7
935.1
840.9
1507.8
1360.8
2355.9
2208.6
3681
3438
6030
5652
9426
9042.0
0.4
321.6
276
502.4
422
785.2
659.6
1246.8
1121.2
2010.4
1814.4
3141.2
2944.8
4908
4584
8040
7536
12568
12056.0
0.5
402
345
628
527.5
981.5
824.5
1558.5
1401.5
2513
2268
3926.5
3681
6135
5730
10050
9420
15710
15070.0
0.6
482.4
414
753.6
633
1177.8
989.4
1870.2
1681.8
3015.6
2721.6
4711.8
4417.2
7362
6876
12060
11304
18852
18084.0
0.7
562.8
483
879.2
738.5
1374.1
1154.3
2181.9
1962.1
3518.2
3175.2
5497.1
5153.4
8589
8022
14070
13188
21994
21098.0
0.8
643.2
552
1004.8
844
1570.4
1319.2
2493.6
2242.4
4020.8
3628.8
6282.4
5889.6
9816
9168
16080
15072
25136
24112.0
0.9
723.6
621
1130.4
949.5
1766.7
1484.1
2805.3
2522.7
4523.4
4082.4
7067.7
6625.8
11043
10314
18090
16956
28278
27126.0

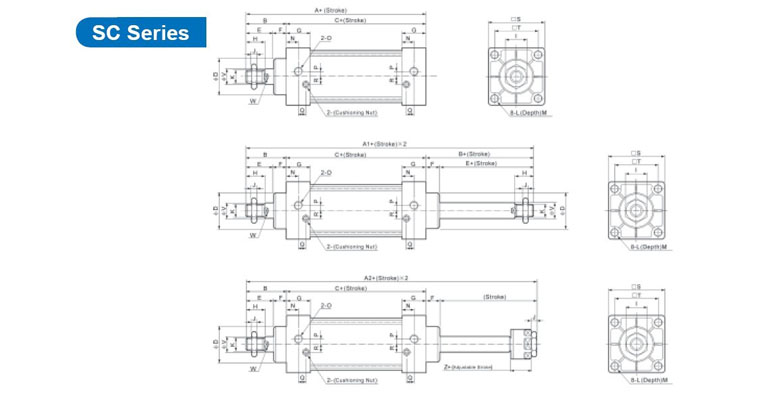

Dimensions


Bore size / Symbol
A
A1
A2
B
C
D
E
F
G
H
I
J
K
32
140
187
182
47
93
28
32
15
27.5
22
17
6
M10×1.25
40
142
191
185
48
93
32
34
15
27.5
24
17
7
M12×1.25
50
150
207
196
57
93
38
42
15
27.5
32
23
8
M16×1.5
63
153
210
199
57
96
38
42
15
27.5
32
23
8
M16×1.5
80
183
258
243
75
108
47
54
21
33
40
26
10
M20×1.5
100
183
258
243
75
108
47
54
21
33
40
26
10
M20×1.5
125
226
/
/
104
122
55
70
34
33
54
40
10
M27×2
160
291
/
/
123
168
62
91
32
48
72
55
18
M36×2
200
347
/
/
167
180
80
112
55
48
72
55
18
M36×2




Bore size /
  Symbol
L
M
N
O
P
Q
R
S
T
V
W
Z
32
M6×1
9.5
13.5
G1/8
3.5
7.5
7
45
33
12
12
21
40
M6×1
9.5
1.5
G1/4
6
8.2
9
50
37
16
14
21
50
M6×1
9.5
13.5
G1/4
8.5
8.2
9
62
47
20
17
23
63
M8×1.25
9.5
13.5
G3/8
7
8.2
8.5
75
56
20
17
23
80
M10×1.5
11.5
16.5
G3/8
10
9.5
14
94
70
25
22
29
100
M10×1.5
11.5
16.5
G1/2
11
9.5
14
112
84
25
22
29
125
M12×1.75
15.5
16.5
G1/2
/
/
/
140
110
32
27
/
160
M16×2
17.5
25
G1/2
/
/
/
180
140
40
36
/
200
M16×2
17.5
25
G3/4
/
/
/
220
175
40
36
/

Dimensions


Symbol / Bore
32
40
50
63
80
100
125
160
200
AA
153
169
173
184
200
210
249
328
380
AC
134
140
149
158
168
174
213
288
320
AD
9.5
14.5
12
12
16
18
18
20
30
AE
50
57
68
80
97
112
140
180
220
AF
33
36
47
56
70
84
90
115
135
AG
20.5
23.5
28
31
30
30
45
60
70
AJ
28
30
36.5
41
49
57
90
115
135
AP
9
12
12
12
14
14
16
18
22
AT
3.2
3.2
3.2
3.2
4
4
8
8
10




Symbol / Bore
32
40
50
63
80
100
125
160
200
BA
28.3
32.3
38.3
38.3
47.3
47.3
56
63
81
BB
10
10
10
12
16
16
20
25
25
BC
47
52
65
76
95
115
140
180
220
BD
33
36
47
56
70
84
90
115
135
BE
72
84
104
116
143
162
224
280
320
BF
58
70
86
98
119
138
180
230
270
BH
6.5
6.5
6.5
8.5
10.5
10.5
15
20
20
AJ
10.5
10.5
13.5
13.5
16.6
16.6
19
25
25
AK
6.5
6.5
8.5
8.5
10.5
10.5
12.5
16.5
16.5
BP
7
7
9
9
12
12
16
18
22
T
33
37
47
56
70
84
110
140
175





Symbol / Bore
32
40
50
63
80
100
125
160
200
S
48
50
62
75
94
112
140
180
220
T
33
37
47
56
70
84
110
140
175
DC
34
34
34
34
48
48
50
55
60
DD
14
14
15
15
20
20
25
30
30
DE
12
14
14
14
20
20
25
30
30
DJ
14
14
15
15
20
20
25
30
30
DQ
16
20
20
20
32
32
70
90
90

Dimensions


Symbol / Bore
32
40
50
63
80
100
125
160
200
CC
19
19
19
19
32
32
50
55
60
CD
5
5
3
3
8
8
25
30
30
CE
12
14
14
14
20
20
25
30
30
CJ
13
13
15
15
21
21
25
30
30
CP
16.3
20.5
20.3
20.3
32.3
32.3
70
90
90
CT
32
44
52
52
64
64
120
160
160
PAI
41
51.8
60.3
60.3
73.8
73.8
130
170
170
PBI
33.5
45.8
54
54
65.5
65.5
121.5
161.5
161.5
S
48
50
62
75
94
112
140
180
220
T
33
37
47
56
70
84
110
140
175

Symbol / Bore
40
50
63
80
100
125
160
200
EB
113
126
138
164
182
210
264
336
EC
63
76
88
114
132
160
200
240
ED
37
47
56
70
84
110
140
175
EE
63
76
88
114
132
160
200
240
EG
25
25
25
25
25
25
32
48
EP
25
25
25
25
25
25
32
38
ET
30
30
30
30
30
30
38
44
S
45.5
55.5
68.5
87.5
107.5
134.5
172.5
212.5

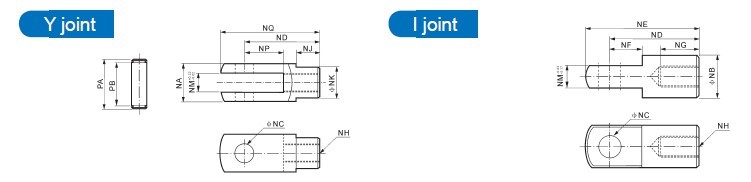

Symbol / Bore
NA
NB
NC
ND
NE
NF
NG
NH
NJ
NK
NM
NP
NQ
PA
PB
32
19
20
10
40
52
15
20
M10×1.25
12
18
10
20
52
26.2
20
40
25.4
24
12
48
67
24
20
M12×1.25
20
23
12
24
62
32.8
26.5
50
32
32
16
64
89
32
23
M16×1.5
22
30
16
32
83
39.3
33
63
32
32
16
64
89
32
23
M16×1.5
22
30
16
32
83
39.3
33
80
44.4
40
20
80
112
40
30
M20×1.5
30
39
20
40
105
53.3
45
100
44.4
40
20
80
112
40
30
M20×1.5
30
39
20
40
105
53.3
45





Dimensions
