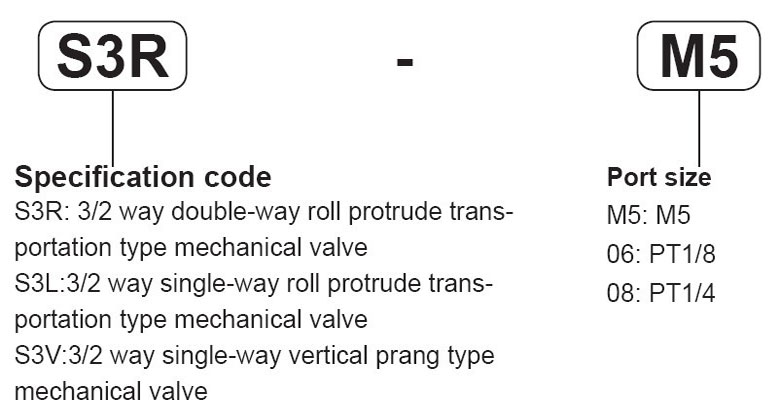

| Model |
S3R
|
S3L
|
S3V
|
| Fluid |
Air
|
| Port size |
M5: M5 06: PT1/8 08: PT1/4
|
| Operating pressure |
0~8Kgf/cm2
|
| Operating temperature |
-5~60oC
|
| Lubrication |
Not required
|
 |
|
|

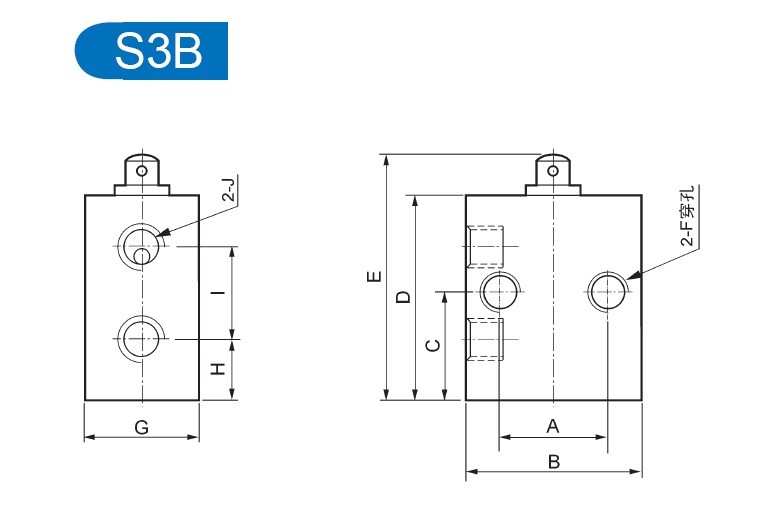

Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
|
M5
|
16
|
26
|
15
|
30
|
36
|
M5×0.8
|
16.5
|
9
|
13
|
M5×0.8
|
|
06
|
23
|
30
|
20.5
|
41
|
47
|
M5×0.8
|
16.5
|
11.5
|
17.5
|
PT1/8
|
|
08
|
24
|
34
|
22.5
|
46
|
52
|
M5×0.8
|
17.5
|
12
|
21
|
PT1/4
|
|
|

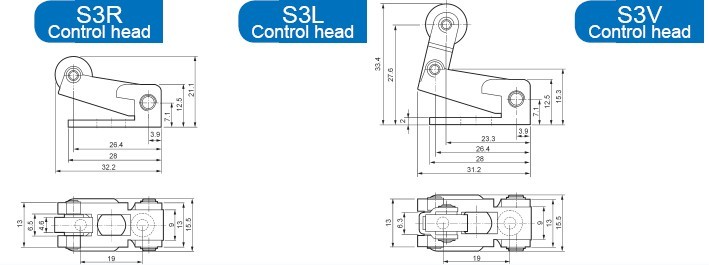

Change way stroke / Model
|
Change way stroke / Model
|
S3R
|
S3L
|
S3V
|
| Axes stroke range |
2.4~3.0
|
2.4~3.0
|
2.4~3.8
|
| Roller stroke range |
4.8~6.2
|
4.5~6.0
|
3.4~4.8
|
|
|
|
A
|
B
|
|
M5
|
26
|
16.5
|
|
06
|
30
|
16.5
|
|
08
|
34
|
17.5
|
|
|
