| Model |

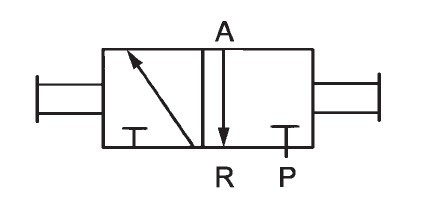

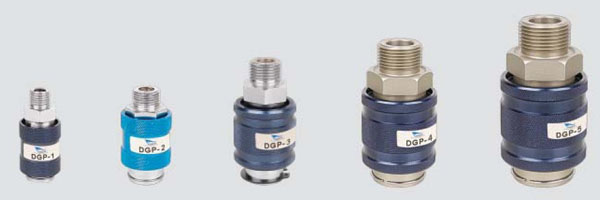

DGP-1
|
DGP-2
|
DGP-3
|
DGP-4
|
DGP-5
|
| Port size |
G1/8″
|
G1/4″
|
G3/8″
|
G1/2″
|
G3/4″
|
| Bore |
4mm
|
7mm
|
10mm
|
12mm
|
18mm
|
| Fluid |
Filtered air
|
| Operating pressure |
0~1.0MPa
|
| Operating temperature |
5~60oC
|
| Actuating force |
20N
|
30N
|

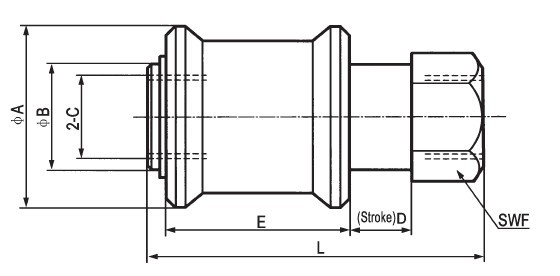

Dimensions
| Model / symbol |
A |
B |
C |
D |
E |
F |
L |
| DGP-1 |
25 |
13 |
G1/8 |
9 |
28 |
14 |
48 |
| DGP-2 |
30 |
18 |
G1/4 |
11 |
32 |
19 |
58 |
| DGP-3 |
35 |
21 |
G3/8 |
14 |
39 |
22 |
68 |
| DGP-4 |
40 |
26 |
G1/2 |
15 |
45 |
27 |
80 |
| DGP-6 |
46 |
30 |
G3/4 |
18 |
50 |
32 |
100 |
|
|
