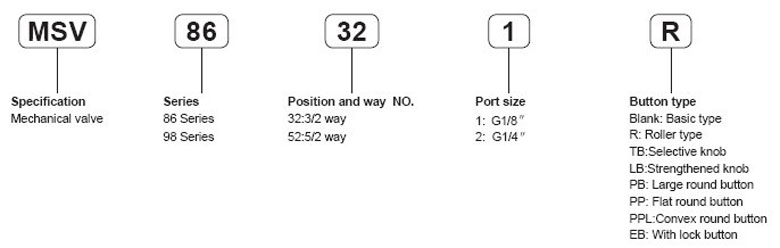

| Model |
MSV86321
|
MSV86522
|
MSV98322
|
| Fluid |
40 micron fi ltered air
|
| Position and way NO. |
3/2 way
|
5/2 way
|
3/2 way
|
| Effective area |
12mm2(CV=0.67)
|
16mm2(CV=0.89)
|
16mm2(CV=0.89)
|
| Port size |
G1/8″
|
G1/4″
|
G1/4″
|
| Operating pressure |
0~0.8MPa
|
| Operating temperature |
0~60oC
|

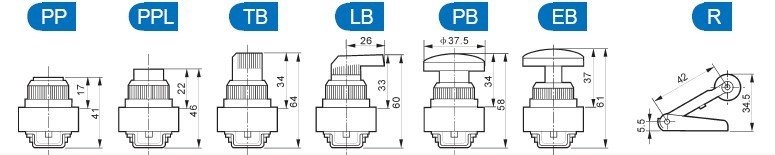

| Series |
Symbol / Model |
PP |
PPL |
LB |
TB |
EB |
PB |
R |

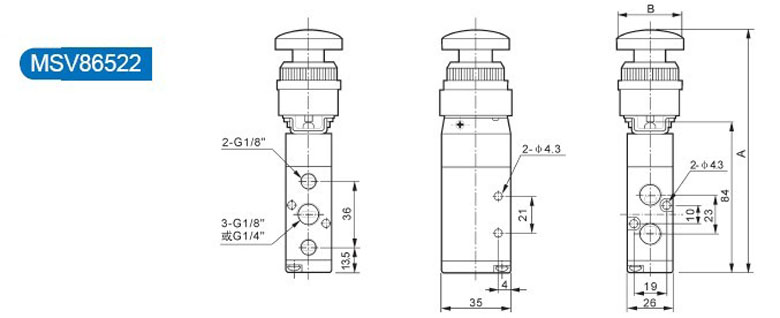

| MSV86522 |
A |
114 |
199 |
133 |
136.5 |
134 |
131 |
107.5 |
| B |
39.5 |
24.5 |
26.5 |
36.5 |
39.5 |
37.5 |
42.5 |
| MSV98322 |
A |
106 |
111 |
125 |
129.5 |
126 |
123 |
99.5 |
| B |
39.5 |
24.5 |
26.5 |
36.5 |
39.5 |
37.5 |
42.5 |
| MSV86321 |
A |
66 |
71 |
85 |
88.5 |
86 |
83 |
59.5 |
| B |
39.5 |
24.5 |
26.5 |
36.5 |
39.7 |
37.5 |
42.5 |
|
|
