Cylinder

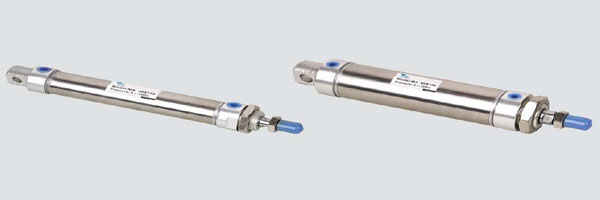

MA Series Stainless Steel Mini Cylinder
Add to cart
Symbol

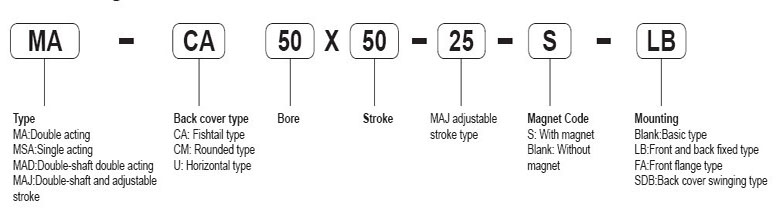

Ordering code

Specifications
  Bore (mm)
16
20
25
32
40
  Operation
Double acting or single acting
  Fluid
Air
  Mounting
Basic FA LB SDB
  Operating pressure
1.0~9.0 Kgf/cm2
  Proof pressure
13.5 Kgf/cm2
  Operating temperature
0~70oC
  Operating piston speed
50~800 mm/s
  Cushioning
Rubber bumper
  Port size
M5×0.8
G1/8″

 Stroke

Bore (mm)
Standard stroke
Max. stroke
Allowable
stroke
16
 25 50 75 80 100 125 150 160 175 200
300
500
20
 25 50 75 80 100 125 150 160 175 200 250 300
500
650
25
 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500
500
650
32
 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500
500
650
40
 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500
500
650

 Theoretical force

Bore size
16
20
25
32
40
Rod diameter
6
8
10
12
16
Operation
Single-acting
Double acting
Single-acting
Double acting
Single-acting
Double acting
Single-acting
Double acting
Single-acting
Double acting
Extrusion
side
Pull side
Extrusion
side
Pull side
Extrusion
side
Pull side
Extrusion
side
Pull side
Extrusion
side
Pull side
Piston area(cm2)
2.01
2.01
1.81
3.14
3.14
2.64
4.90
4.90
4.12
8.04
8.04
6.90
12.56
12.56
10.55
Operating
pressure
(Kgf/cm2)
1
-
2.01
1.81
-
3.14
2.64
-
4.90
4.12
-
8.04
6.90
-
12.56
10.55
2
-
4.02
3.62
1.57
6.28
5.28
2.45
9.80
8.24
4.02
16.08
13.80
6.28
25.12
21.10
3
2.01
6.03
5.43
4.71
9.42
7.92
7.35
14.70
12.36
12.06
24.12
20.70
18.84
37.68
31.65
4
4.02
8.04
7.24
7.85
12.56
10.56
12.25
19.60
16.48
20.10
32.16
27.60
31.40
50.24
42.20
5
6.03
10.05
9.05
10.99
15.70
13.20
17.15
24.50
20.60
28.14
40.20
34.50
43.96
62.80
52.75
6
8.04
12.06
10.86
14.13
18.84
25.84
22.05
29.40
24.72
36.18
48.24
41.40
56.52
75.36
63.30
7
10.04
14.07
12.67
17.27
21.98
18.48
26.95
34.30
28.84
44.22
56.28
48.30
69.08
87.92
73.85
8
-
-
-
20.41
25.12
21.12
31.85
39.20
32.96
52.26
64.32
55.20
81.64
100.48
84.40
9
-
-
-
23.55
28.26
23.76
36.75
44.10
37.08
60.30
72.36
62.10
94.20
113.04
94.95

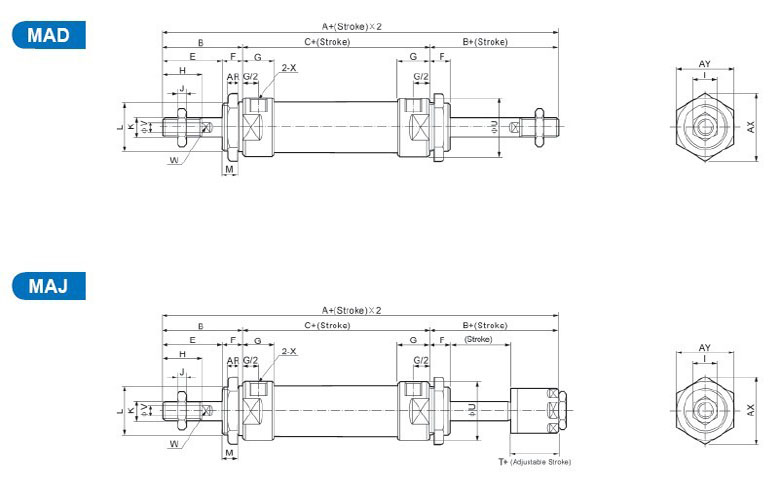

Dimensions

Bore size / Symbol  A  A1  A2  B  C  D  D1  E  F  G  H  I  J  K
16 114 114 98 38 60 15 15 22 16 10 16 10 5 M6×1
20 137 128 116 40 76 21 12 28 12 16 20 12 6 M8×1.25
25 141 134 120 44 76 21 14 30 14 16 22 17 6 M10×1.25
32 147 134 120 44 76 27 14 30 14 16 22 17 6 M10×1.25
40 149 136 122 46 76 27 14 32 14 16.7 24 17 7 M12×1.25



Bore size / Symbol  L  M  P  Q  R  R1  S  U  V  W  X  AR  AX  AY
16 M16×1.5  14 6 12 14 14 9 21 6 5 M5  6 24 27.5
20 M22×1.5  10 8 16 19 12 12 27 8 6 G1/8  7 33 29
25 M22×1.5  12 8 16 19 14 12 30 10 8 G1/8  7 33 29
32 M24×2.0  12 10 16 25 14 15 35 12 10 G1/8  8 37 32
40 M30×2.0  12 12 20 25 14 15 41.6 16 14 G1/8  9 47 41

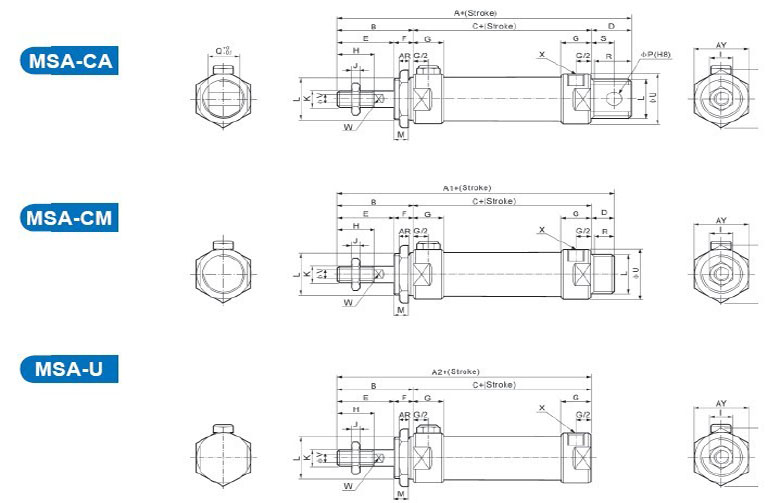

 Dimensions

Symbol A A1 A2 B C D D1 E F G H I J
Bore / Stroke 0~50 51~100 0~50 51~100 0~50 51~100 0กซ50 51กซ100
20 137 162 128 153 116 141 40 76 101 21 12 28 12 16 20 12 6
25 141 166 134 159 120 145 44 76 101 21 14 30 14 16 22 17 6
32 147 172 134 159 120 145 44 76 101 27 14 30 14 16 22 17 6
40 149 174 136 161 122 147 46 76 101 27 14 32 14 22 24 17 7
Bore / Symbol K L M P Q R R1 S U V W X AR AX AY
20 M8×1.25 M22×1.5 10 8 16 19 12 12 27 8 6 G1/8 7 33 29
25 M10×1.25 M22×1.5 12 8 16 19 14 12 30 10 8 G1/8 7 33 29
32 M10×1.25 M24×2.0 12 10 16 25 14 15 35 12 10 G1/8 8 37 32
40 M10×1.25 M24×2.0 12 12 20 25 14 15 41.6 16 14 G1/8 9 47 41


Dimensions


Bore/Symbol A  A1  B  C  E  F  G  H  I  I  K
20 156 153 40 70 28 12 16 20 12 6 M8×1.25
25 164 161 44 70 30 14 16 22 17 6 M10×1.25
32 164 161 44 70 30 14 16 22 17 6 M10×1.25
40 168 164 46 92 32 14 22 24 17 7 M12×1.25



Bore/Symbol  L  M  U  V  W  X  AR  AX  AY  T
20 M221.5  10 29 8 6 G1/8  7 33 29 19
25 M221.5  12 34 10 8 G1/8  7 33 29 21
32 M241.5  12 39.5 12 10 G1/8  8 37 32 21
40 M302.0  12 49.5 16 14 G1/4  9 47 41 21





Dimensions
