Air Filter

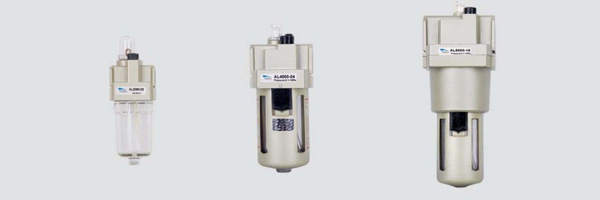

Lubricator(AL1000~5000 series)
Add to cart
Symbol

Ordering code
Specifications
  Fluid
Air
  Proof pressure
1.5MPa(15kgf/cm2)
  Max.operating pressure
1.0MPa(10kgf/cm2)
  Ambient and fl uid temperature
5~60oC
  Recommended lubricant
Class 1 turbine oil (ISO VG32)
  Bowl material
PC K1300
  Bowl guard
AL1000~2000 (Not available) AL3000~5000 (Available)



Model
Specifi cations
Accessories
*Min. dripping fl ow rate
(L/min)
*Rated fl ow
(L/min)
**Port size
(G)
Oil
capacity(CM3)
Weight
(kg)
Bracket
AL1000-M5
4
95
M5
7
0.07
-
AL2000-01
15
800
1/8
25
0.22
B240
AL2000-02
1/4
AL3000-02
30
1700
1/4
50

0.30

B340
AL3000-03
40
3/8
AL4000-03
40
5000
3/8
130
0.56
B440
AL4000-04
50
1/2
AL4000-06
50
6300
3/4
130
0.58
B540
AL5000-06
190
7000
3/4
130
1.08
B640
AL5000-10
1

*Under the circumstance that the inlet pressure is 0.5MPa(5.1kgf/cm2),dripping fl ow rate is 5drops/minute,use of Class 1 turbine oil and 20íŠ temperaure
*Under the circumstance that the inlet pressure is 0.5MPa (5.1kgf/cm2)and the set pressure is 0.03MPa (0.3kgf/cm2).
** Rc and NPT port sizes are available.

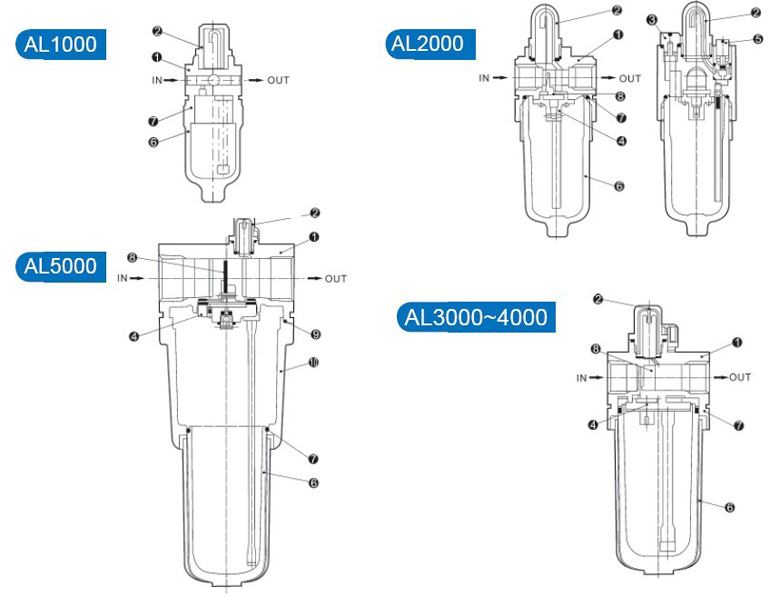

Construction


Component Parts

NO.
Descriptions
Material
AL1000
AL2000 ~ 4000
AL5000
1
Body
Zinc die-cast
Aluminum die-cast
2
Sight dome assembly
Polycarbonate, Nylon
3
Oil feed plug
POM
4
Defl ector gate
POM
5
Oil adjusting handle
POM
6
Bowl assembly(bowl guard)
Polycarbonate (Cold rolled steel), PC K1300(Cold rolled steel)
7
O-ring
NBR
8
Retainer
POM
9
O-ring
NBR
10
Middle part
Aluminum die-cast



Model
Port Size G
AL1000
M5
25
81.5
25.5
25
-
-
-
-
-
-
-
27
AL2000
1/8~1/4
40
122
38
40
30
27
22
5.4
8.4
40
2.3
40
AL3000
1/4~3/8
53
142
38
53
41
40
23
6.5
8
53
2.3
56
AL4000
3/8~1/2
70
177
41
70
50
54
26
8.5
10.5
70
2.3
73
AL4000-06
3/4
75
177
39
70
50
54
25
8.5
10.5
70
2.3
73
AL5000
3/4~1
90
254
45
90
66.5
66
35
11
13
90
3.2
90

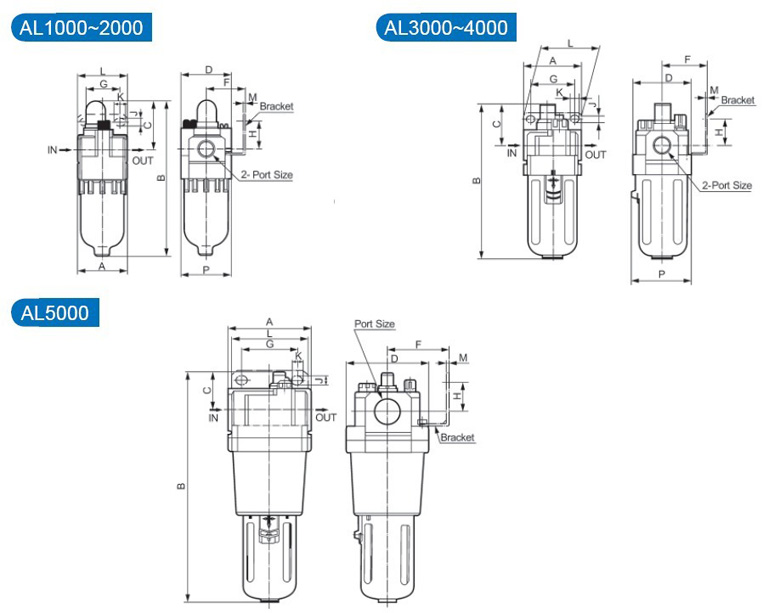

Dimensions
