Solenoid Valve

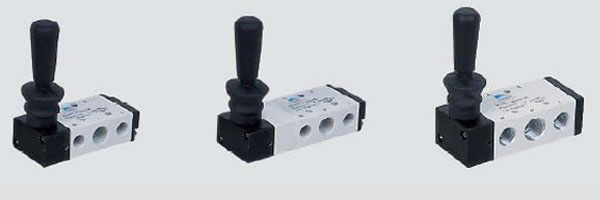

Hand-Pull Valve-1
Add to cart
Symbol
Ordering code



Specifications
   Model
4H210-06
4H210-08
4H230-08
4H310-08
 4H310-10
4H410-15
   Fluid
40 micron fi ltered air
  Operation
Direct drive type
  Effective area


14mm2(CV=0.78)


 16mm2(CV=0.89) 12mm2(CV=0.67)

25mm2(CV=1.4)

 30mm2(CV=1.68) 50mm2(CV=2.79)
  Port size
Air inlet=Air outlet
=Exhaust=G1/8″
Air inlet=Air outlet=G1/4″ Exhaust=G1/8″

Air inlet=Air outlet=
Exhaust=G1/4″
 Air Inlet=Air outlet=
G1/8″
Exhaust=G1/4″
Air Inlet=Air outlet=
Exhaust=G1/2″
  Operating pressure
0~0.8MPa
  Operating temperature
0~60oC

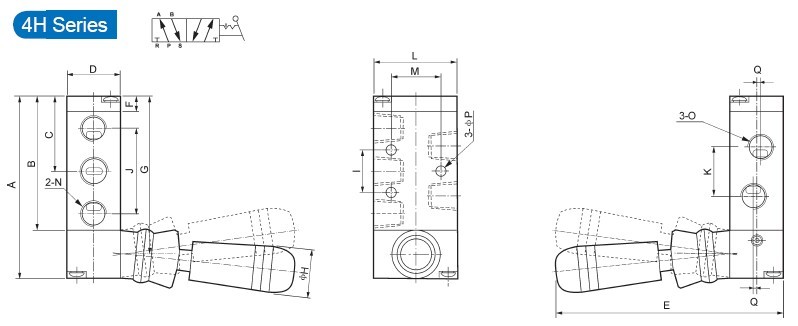

 Dimensions

Symbol / Model
4H210-06
4H230-06
4H230-06
(Automatic reset)
4H210-08
4H230-08L
4H230-08
(Automatic reset)
4H310-08
4H310-10
4H410-15
A
76
95
76
95
92
92
126
B
56.5
75.5
56.5
75.5
72.5
72.5
102
C
31.5
31.5
31.5
31.5
40
40
55.5
D
22
22
22
22
27
27
34
E
95
95
95
95
100
100
110
F
6.5
6.5
6.5
6.5
7.5
7.5
7.5
G
66.5
85.5
66.5
85.5
82.5
82.5
114
H
18
18
18
18
18
18
16
I
20
20
20
20
24
24
26
J
36
36
36
36
45
45
63
K
21
21
21
21
24
24
36
L
35
35
35
35
40
40
50
M
21
21
21
21
27
27
35
N
G1/8
G1/8
G1/8
G1/8
G1/4
G1/4
G1/2
O
G1/8
G1/8
G1/4
G1/4
G1/4
G3/8
G1/2
P
4.3
4.3
4.3
4.3
4.3
4.3
5.5
Q
-
-
1.5
1.5
-
2
-





Dimensions
