Home > Products
Solenoid Valve

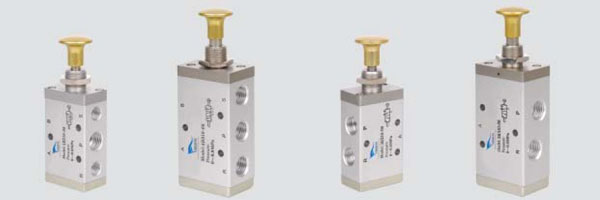

Hand-Draw Valve
Add to cart
Symbol

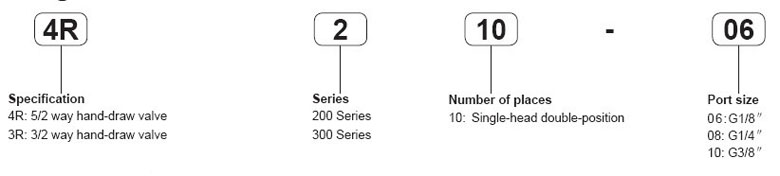

Ordering code



Specifications
Mode
4R210-06
4R210-08
3R210-06
3R210-08
4R310-08
4R310-10
3R310-08
3R310-10
Fluid
40 micron fi ltered air
Position and way NO.
5/2 way
3/2 way
5/2 way
3/2 way
Effective area
14mm2(CV=0.78)
16mm2(CV=0.89)
14mm2(CV=0.78)
16mm2(CV=0.89)
25mm2(CV=1.40)
30mm2(CV=1.68)
25mm2(CV=1.40)
30mm2(CV=1.68)
Port size
Air inlet=Air outlet
=Exhaust=G1/8″
Air inlet=Air outlet
=G1/4″
Exhaust=G1/8″
Air inlet=Air outlet
=Exhaust=G1/8″
Air inlet=Air outlet
=Exhaust=G1/4″
Air inlet=Air outlet
=Exhaust=G1/4″
Air inlet=Air outlet
=G3/8″
Exhaust=G1/4″
Air inlet=Air outlet
=Exhaust=G1/4″
Air inlet=Air outlet
=Exhaust=G3/8″
Operating pressure
0~0.8MPa

Operating temperature
0~60o

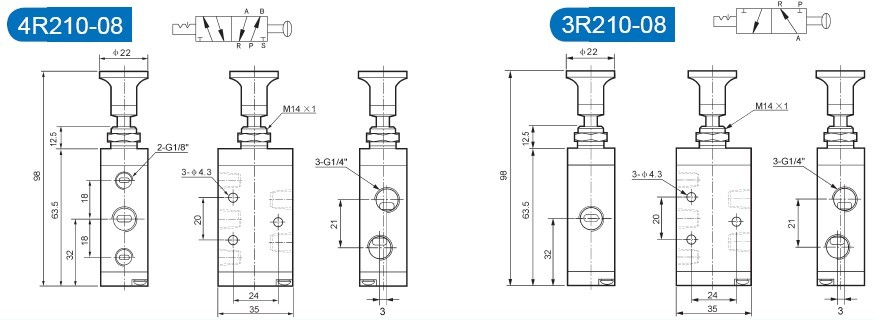

Dimensions
