Home > Products

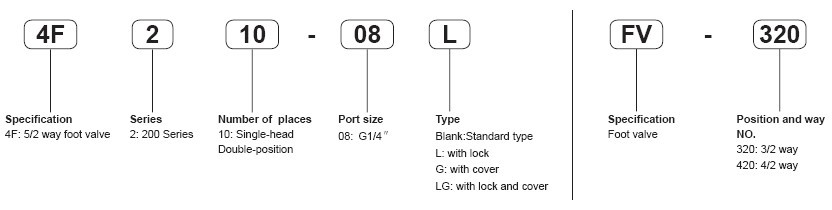

Ordering code

Specifications

Model	4F210-08	4F210-08L	4F210-08G	4F210-08LG	FV420	FV320
Fluid
Position and way NO.	5/2 way				4/2 way	3/2 way
Operation	Direct drive type
Port size	Air inlet=Air outlet=Exhaust=G1/4″				Air inlet=Air outlet=G1/4″Exhaust=G1/8″
Operating pressure	0~0.8MPa
Operating temperature	0~60^oC

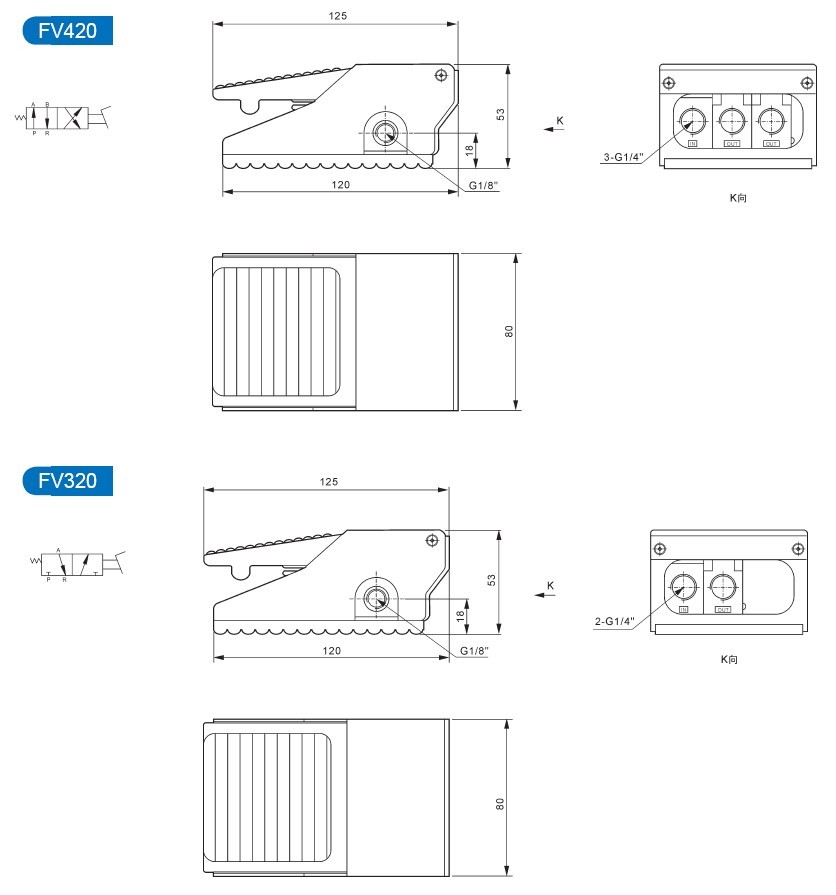

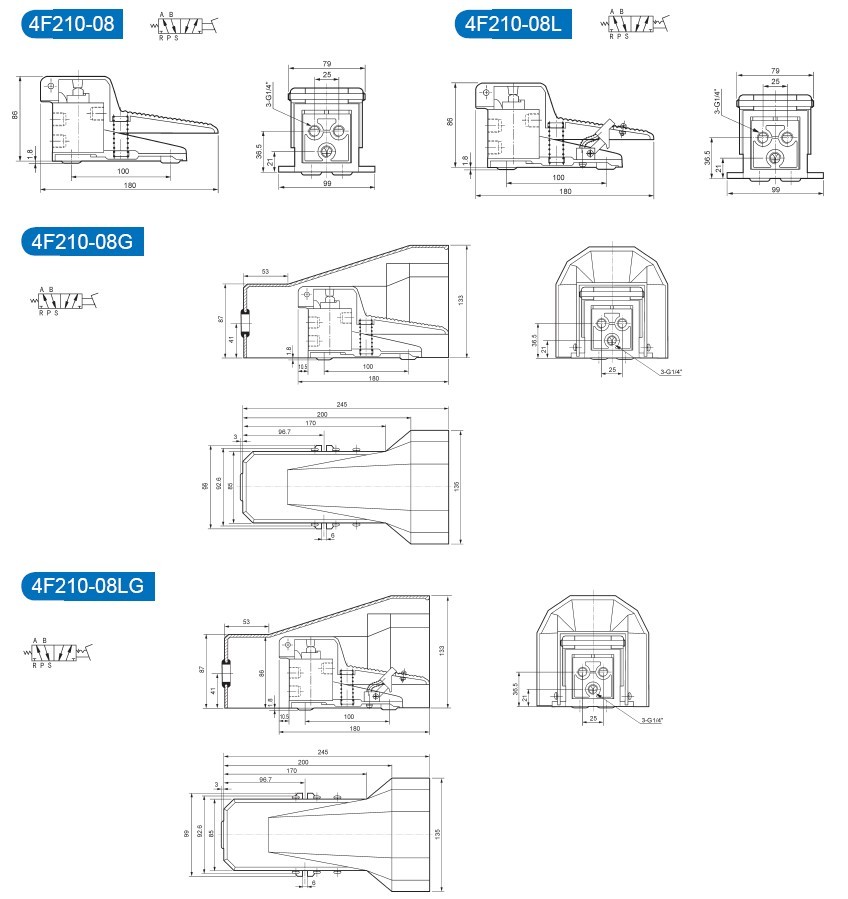

Dimensions
