Air Filter

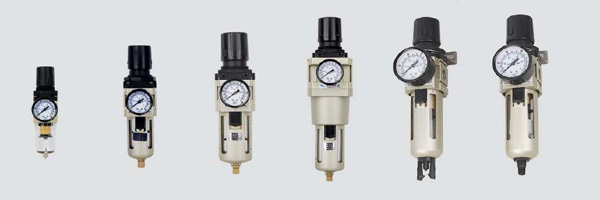

Filter&Regulator(AW1000~5000 series)
Add to cart
Symbol



Ordering code
Specifications
  Fluid
Air
  Proof pressure
1.5MPa(15kgf/cm2)
  Max. operating pressure
1.0MPa(10kgf/cm2)
  Ambient and fl uid temperature
5~60oC
  Nominal fi ltration rating
5μm 25μm 50μm
  Bowl material
Polycarbonate
  Bowl guard
AW1000~2000(Not Available) AW3000~5000(Available)
  Set pressure range
AW1000: 0.05~0.7MPa(0.5~7kgf/cm2) AW2000~5000: 0.05~0.85MPa(0.5~8.5kgf/cm2)
  Regulator construction
Relieving type



Model
Specifi cations
Accessories
Drain function
Model of AW
series with
auto drain
*Rated fl ow
(L/min)
**Port size
(G)
Pressure
gauge port
size
Weight
(kg)
Bracket
Pressure
gauge
AW1000-M5
100
M5
1/16
0.09
B120
G27-10-R1

Manual drain
-
AW2000-01
550
1/8
1/8
0.36
B220
G36-10-01
AW2000-01D
AW2000-02
1/4
AW2000-02D
AW3000-02
2000
1/4
1/8
0.56
B320
a.Air shutoff drain
b.Manual drain
AW3000-02D
AW3000-03
3/8
AW3000-03D
AW4000-03
4000
3/8
1/4
1.15
B420
G46-10-02
AW4000-03D
AW4000-04
1/2
AW4000-04D
AW4000-06
4500
3/4
1/4
1.21
AW4000-06D
AW5000-06
5500
3/4
1/4
1.70
AW5000-06D
AW5000-10
1
AW5000-10D

*Under the circumstance that the inlet is 0.7MPa(7.1kgf/cm2) and the set pressure is 0.5MPa(5.1kgf/cm2)
**Rc.and NPT port sizes are available.

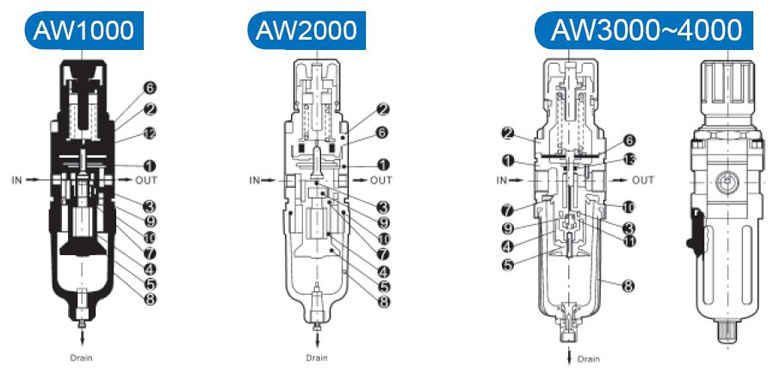

Construction


Component parts


NO.
Description
Material
NO.
Description
Material
AW1000
AW2000
AW4000
AW1000
AW2000
AW4000
1
Body
Zinc die-cast
Aluminum die-cast
8

Bowl assembly
(Bowl guard)

Polycarbonate (Cold rolled steel)
2
Bonnet
Reinforced nylon
Aluminum die-cast
9
Spring
Stainless steel
3
Valve assembly
Brass,NBR
10
O-ring
NBR
4
Filter element
Brass
11
O-ring
NBR
5
Baffle
POM
12
Hand wheel
Nylon
6
Diaphragm assembly
NBR
13
O-ring
NBR
7
Whirlwind blade
POM




Model
Port size (G)
AW1000
M5
25
109.5
50.5
25
26
25
28
30
4.5
6.5
40
2
20.5
28
AW2000
1/8~1/4
40
164.5
78
40
56.8
30
34
43.5
5.4
15.4
55
2.3
33.5
40
AW3000
1/4~3/8
53
211
92.5
53
60.8
39
40
46
6.5
8
53
2.3
42.5
56
AW4000
3/8~1/2
70
262
112
70
70.5
49.2
54
53.5
8.5
10.5
70
2.3
52.5
73
AW4000-06
3/4
75
267
114
70
70.5
49.2
54
55.5
8.5
10.5
70
2.3
52.5
73
AW5000
3/4~1
90
338
116
90
75.5
49.2
54
62
8.5
10.5
70
2.3
52.5
90

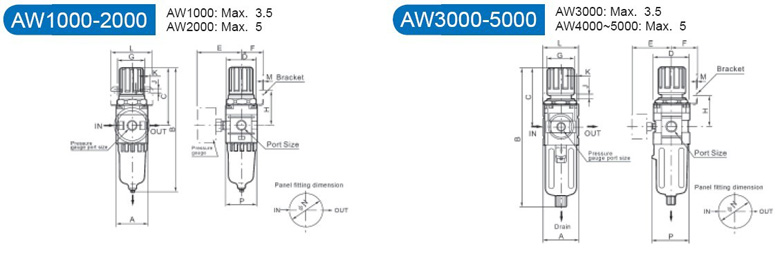

Dimensions
