DNC Series ISO6431 Standard Cylinder |
|  |
 |
Add to cart |
|
Symbol |
|
|
| Bore (mm) |
32
|
40
|
50
|
63
|
80
|
100
|
125
|
| Fluid |
Filtered air
|
| Operation |
Double acting
|
| Proof pressure |
1.5MPa
|
| Max. operating pressure |
1.0MPa
|
| Min. operating pressure |
0.1MPa
|
| Cushioning |
Air cushioning (Standard)
|
| Ambient temperature |
5~60oC
|
| Operating piston speed |
50~500mm/s
|
| Allowable stroke tolerance |
0~250 251~1000 1001~1500
|
| Operating life |
Not less than 4000Km
|
| Lubrication |
Not required
|
| Port size |
1/8″
|
1/4″
|
3/8″
|
1/2″
|
Stroke
|
Bore
|
Standard stroke
|
Cushioning length PPV
|
Max. stroke range
|
|
32
|
25 40 50 80
100 125 160
200 250 320
400 500
|
20
|
10~2000
|
|
40
|
|
50
|
22
|
|
63
|
|
80
|
32
|
|
100
|
|
125
|
|
|
Bore
|
Min. stroke of proximity sensor
|
Type of proximity sensor
|
|
32
|
32
|
KCK2400C
embedding type
|
|
40
|
40
|
|
50
|
50
|
|
63
|
63
|
|
80
|
80
|
|
100
|
100
|
|
125
|
125
|
|

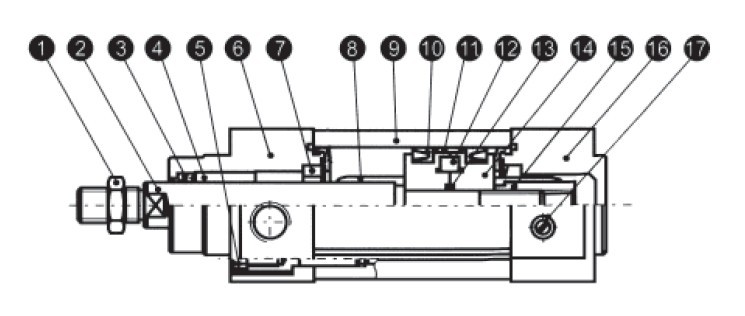

Construction
.jpg)
Component parts
| No. |
Name |
Material |
| 1 |
Nut |
35 |
| 2 |
Piston rod |
45 |
| 3 |
Axes envelop |
PU |
| 4 |
Guide envelop |
Sleeve bearing |
| 5 |
Rod bolt |
35 |
| 6 |
Front cover |
ZZnAI4-1 |
| 7 |
Cushioning seal |
NBR |
| 8 |
Cushioning piston |
POM |
|
|
| No. |
Name |
Material |
| 9 |
Cylinder tube |
A6063-TS |
| 10 |
“Y”Ring |
NBR |
| 11 |
Washer |
F4 |
| 12 |
Magnetic ring |
Magnetic plastic |
| 13 |
“O”Ring |
NBR |
| 14 |
Front and back piston |
LY12 |
| 15 |
Compaction nut |
LY12 |
| 16 |
Back cover |
ZZnAI4-1 |
| 17 |
Adjustable valve pin |
HPb59-1 |
|

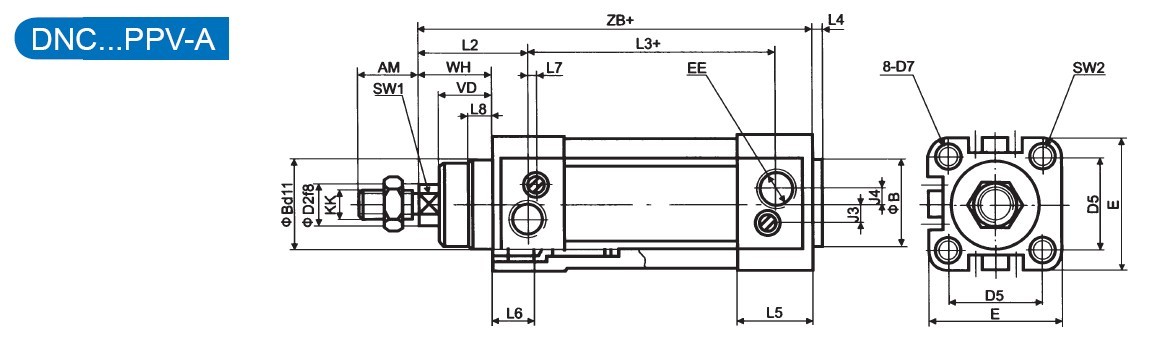

Basic type
Dimensions
.jpg)
|
Bore
|
AM
|
B
|
D2
|
D5
|
D7
|
E
|
EE(G)
|
J3
|
J4
|
KK
|
L2
|
L3
|
L4
|
L5
|
L6
|
L7
|
L8
|
SW1
|
SW2
|
VD
|
WH
|
ZB
|
|
32
|
22
|
30
|
12
|
32.5
|
M6
|
45
|
1/8
|
6
|
5.2
|
M10×1.25
|
41.6
|
62.8
|
4
|
26
|
16
|
3.3
|
10
|
10
|
6
|
18
|
26
|
120
|
|
40
|
24
|
35
|
16
|
38
|
M6
|
54
|
1/4
|
8
|
6
|
M12×1.25
|
44
|
77
|
4
|
29.5
|
16
|
3.6
|
10.5
|
13
|
6
|
21.5
|
30
|
135
|
|
50
|
32
|
40
|
20
|
46.5
|
M8
|
64
|
1/4
|
10
|
8.5
|
M16×1.5
|
51
|
78
|
4
|
30
|
17
|
5.1
|
11.5
|
17
|
8
|
28
|
37
|
143
|
|
63
|
32
|
45
|
20
|
56.5
|
M8
|
75
|
3/8
|
12.4
|
10
|
M16×1.5
|
54
|
87
|
4
|
35.5
|
17
|
6.6
|
15
|
17
|
8
|
28.5
|
37
|
158
|
|
80
|
40
|
45
|
25
|
72
|
M10
|
94
|
3/8
|
12.5
|
8
|
M20×1.5
|
62.4
|
95.2
|
4
|
36
|
17
|
10.5
|
15.7
|
22
|
10
|
34.7
|
46
|
174
|
|
100
|
40
|
55
|
25
|
89
|
M10
|
112
|
1/2
|
11.8
|
10
|
M20×1.5
|
69.8
|
100.4
|
4
|
39
|
17
|
8
|
19.2
|
22
|
10
|
38.2
|
51
|
189
|
|
125
|
54
|
60
|
32
|
110
|
M12
|
134
|
1/2
|
13
|
8
|
M27×2
|
83
|
124
|
6
|
36
|
22
|
14
|
20.5
|
27
|
8
|
46
|
65
|
225
|

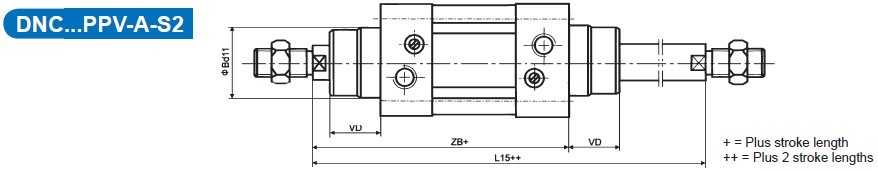

Through piston rod type
Dimensions
|
Bore
|
B
|
L15
|
VD
|
ZB
|
|
32
|
30
|
146
|
18
|
120
|
|
40
|
35
|
165
|
21.5
|
135
|
|
50
|
40
|
180
|
28
|
143
|
|
63
|
45
|
195
|
28.5
|
158
|
|
80
|
45
|
220
|
34.7
|
174
|
|
100
|
55
|
240
|
38.2
|
189
|
|
125
|
60
|
291
|
46
|
225
|

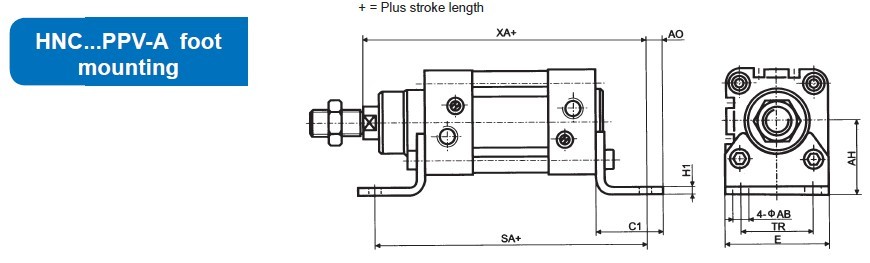

Dimensions
|
Bore
|
AB
|
AH
|
AO
|
C1
|
E
|
H1
|
SA
|
TR
|
XA
|
|
32
|
7
|
32
|
6.5
|
30.5
|
45
|
5
|
142
|
32
|
144
|
|
40
|
10
|
36
|
9
|
37
|
54
|
5
|
161
|
36
|
163
|
|
50
|
10
|
45
|
10.5
|
41.5
|
64
|
6
|
170
|
45
|
175
|
|
63
|
10
|
50
|
12.5
|
44.5
|
75
|
6
|
185
|
50
|
190
|
|
80
|
12
|
63
|
15
|
56
|
93
|
6
|
210
|
63
|
215
|
|
100
|
14.5
|
71
|
17.5
|
58.5
|
110
|
6
|
220
|
75
|
230
|

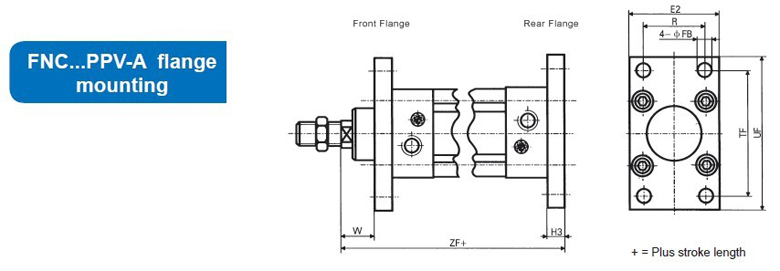

Dimensions
|
Bore
|
E2
|
FB H13
|
H3
|
R
|
TF
|
UF
|
W
|
ZF
|
|
32
|
50
|
7
|
10
|
32
|
64
|
80
|
16
|
130
|
|
40
|
55
|
9
|
10
|
36
|
72
|
90
|
20
|
145
|
|
50
|
65
|
9
|
12
|
45
|
90
|
110
|
25
|
155
|
|
63
|
75
|
9
|
12
|
50
|
100
|
125
|
25
|
170
|
|
80
|
100
|
12
|
16
|
63
|
126
|
154
|
30
|
190
|
|
100
|
120
|
14
|
16
|
75
|
150
|
186
|
35
|
205
|

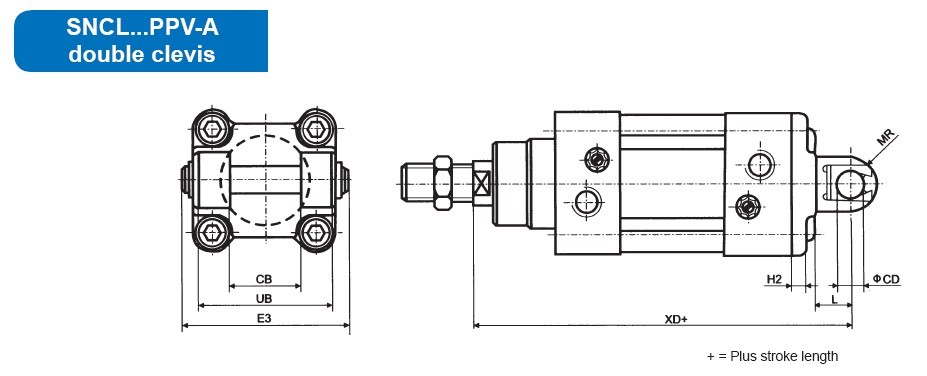

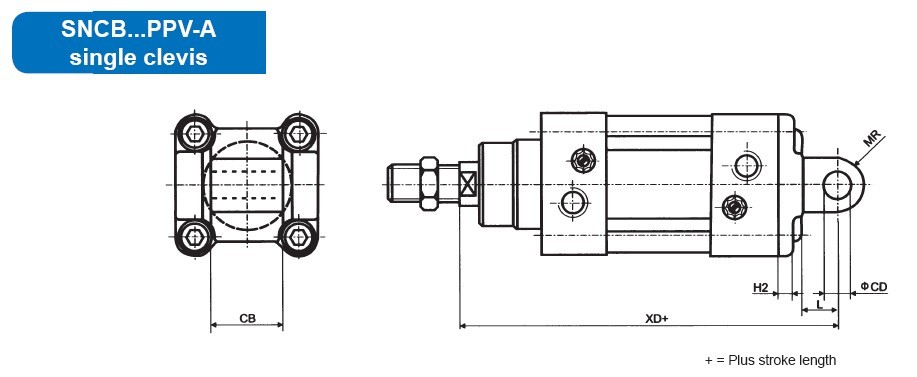

Dimensions
.jpg)
|
Bore
|
CB
|
CD
|
E3
|
H2
|
L
|
MR
|
UB
|
XD
|
|
32
|
26
|
10
|
55
|
6
|
13
|
10
|
45
|
142
|
|
40
|
28
|
12
|
63
|
6
|
16
|
12
|
52
|
160
|
|
50
|
32
|
12
|
71
|
7
|
16
|
12
|
60
|
170
|
|
63
|
40
|
16
|
83
|
7
|
21
|
16
|
70
|
190
|
|
80
|
50
|
16
|
103
|
10.5
|
22
|
16
|
90
|
210
|
|
100
|
60
|
20
|
127
|
10.5
|
27
|
20
|
110
|
230
|
Dimensions
