Home > Products
Air Filter

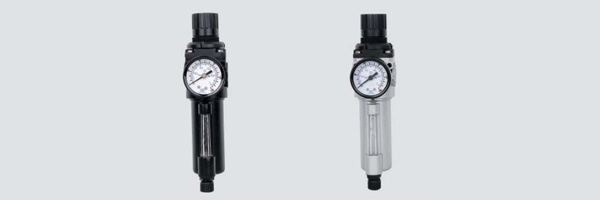

C Series Regulator&Filter Combination
Add to cart

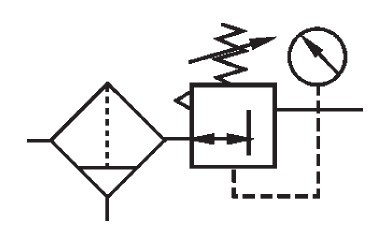

Symbol

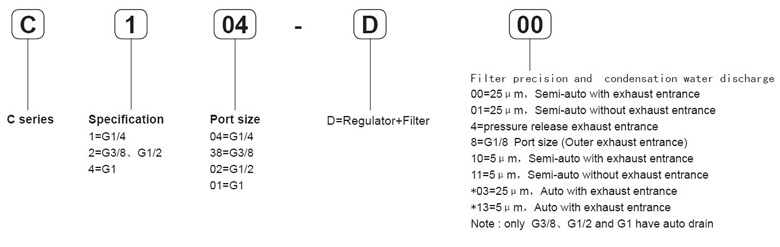

Ordering code

Specifications
Structure type
Compact Type,Diaphragm Type regualtor
Material
Al- alloy based body & water storage cup engineering plastic observation window , nylon handle,NBR seals
Port size
G1/4     G3/8     G1/2     G1
Max. pondage
          28       85       85      380     cm3
Weight
        0.510     0.700    0.690   2.280     kg
Pressure gauge port size
G1/8     G1/8     G1/8     G1/4
Installation type
Upright place,tube and board connection or wall installation
Operating temperature
0~50oC (0.1MPa)
Nominal fi ltration rating
25μm(Standard ),5μm(Client required)
Drain type
Semi-auto (standard), Auto (Client requiret)
Surface coat
Painted
Inlet pressure
0.03~1.6MPa
Outlet pressure
0.05~1.0MPa

Model
A
B
C
D
E
F
G
H
I
L
M
N
O
P
Q
R
S
T
U
C104-D00
194
103
52
39
11
127
28
5
28
30×1.5
45
45
G1/8
34
-
3
0-6
35
G1/4
C238-D00
264
134
71
59
15
156
41
6
45
47×1.5
62
59
G1/8
50
-
3.5
0-9
46
G3/8
C202-D00
257
134
71
59
15
156
41
6
45
47×1.5
62
59
G1/8
50
-
3.5
0-9
46
G1/2
C401-D00
344
146
89
124
-
193
43
-
60
-
110
110
G1/8
89
111
5
-
-
G1

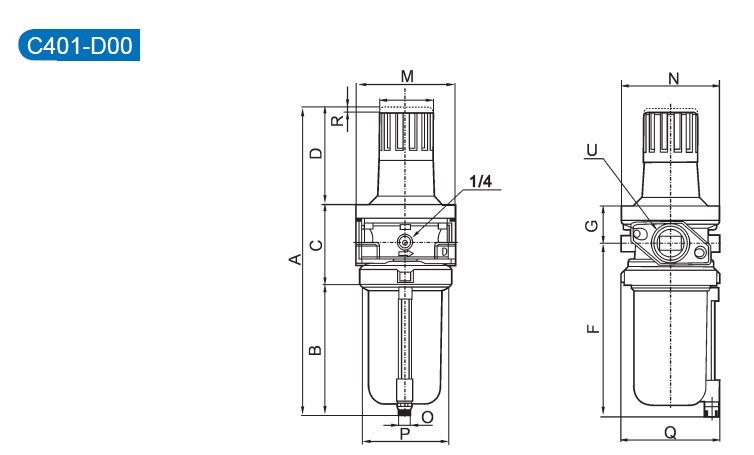

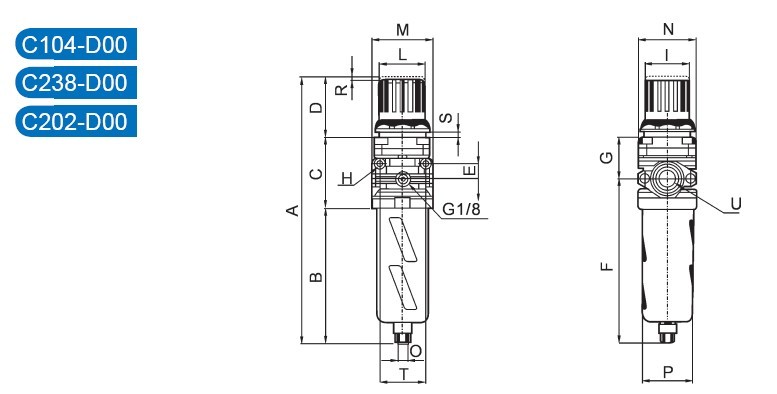

Dimensions
