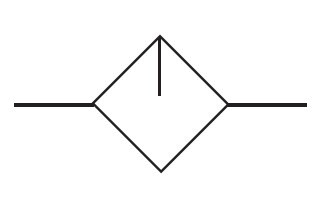

| Structure type |
Compact Type,Diaphragm Type regualtor
|
| Material |
Al-alloy shelly body& oil storage cup engineering plastic observation window NBR seals
|
| Port size |
G1/4 G3/8 G1/2 G1
|
| Oil cubage |
37 130 130 455 cm3
|
| Weight |
0.210 0.430 0.420 1.150 kg
|
| Installation type |
Upright place,tube and board connection or wall installation
|
| Operating temperature |
-10oC ~5oC (1MPa)
|
| Put on steam |
G1/4 cannot pressure put on steam ,G3/8,G1/2,G1 can pressure put on steam
|
| Lubrication |
Oil mucosity 3°-10°E (May ask our engineer)
|
| Surface coat |
Painted
|
| Operating pressure |
0~1.6MPa
|
| Least start brume flow |
G1/4 G3/8 G1/2 G1
|
|
(0.1MPa) 5 4 4 25 NI/min
|
|
(0.6MPa) 8 8 9 60 NI/min
|
|

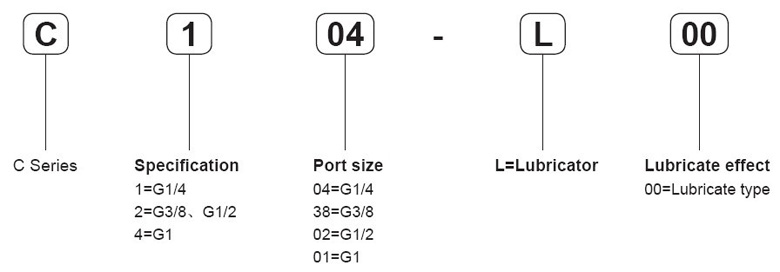

Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
M
|
N
|
P
|
Q
|
T
|
U
|
|

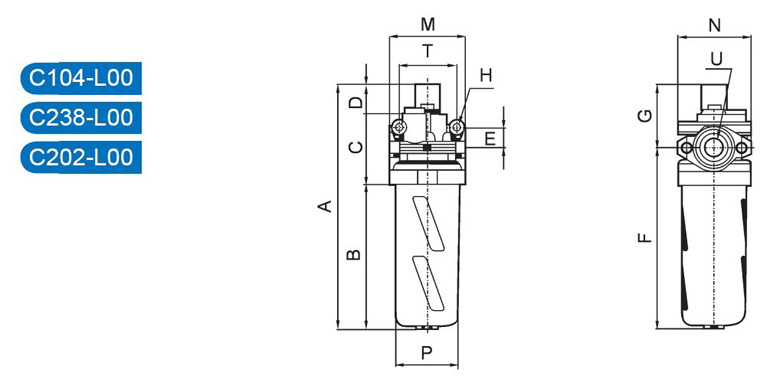

C104-L00
|
157
|
85
|
48
|
24
|
11
|
110
|
47
|
5
|
45
|
45
|
34
|
-
|
35
|
G1/4
|
|
C238-L00
|
195
|
115
|
56
|
24
|
15
|
145
|
50
|
6
|
62
|
59
|
50
|
-
|
46
|
G3/8
|
|
C202-L00
|
195
|
115
|
56
|
24
|
15
|
145
|
50
|
6
|
62
|
59
|
50
|
-
|
46
|
G1/2
|
|

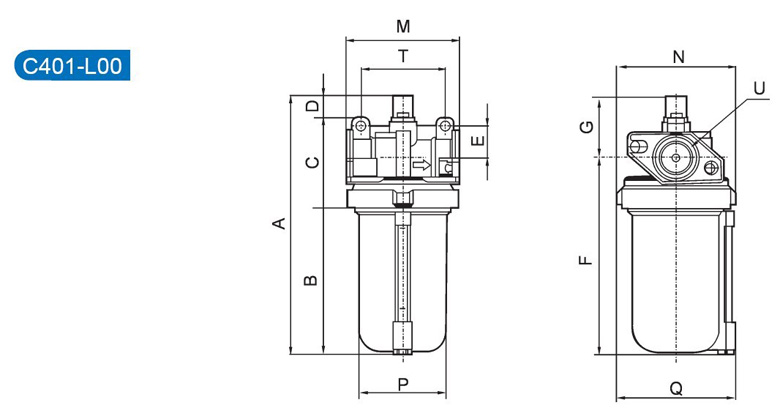

C401-L00
|
239
|
135
|
82
|
22
|
29
|
181
|
58
|
8
|
105
|
110
|
89
|
111
|
78
|
G1
|
|
|
