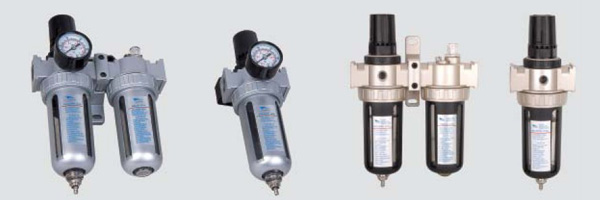

This product is the combination of fi lter, regulator and lubricator. It has tight structure, large fl ow rate, steady output and simple
installation. The accessories include pressure gauge and mounting bracket. The lubricator can add oil with air on. All have the bowl
guard. Use safely and appearance beautifully.
|
| Model |
SFC-200
|
SFC-300
|
SFC-400
|
| Port size |
1/4Rc
|
3/8Rc
|
1/2Rc
|
| Pressure gauge port size |
1/8Rc
|
1/8Rc
|
1/8Rc
|
| Proof pressure |
1.5MPa
|
| Max. operating pressure |
1.0MPa
|
| Ambient and fl uid temperature |
5~60oC
|
| Bowl guard |
Available
|

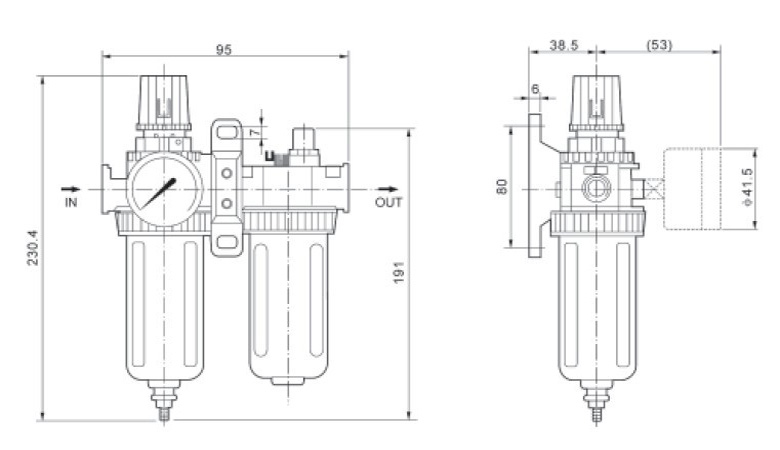

Dimensions
Dimensions
Specifi cations
| Model |
SL-200
|
SL-300
|
SL-400
|
| Port size |
1/4Rc
|
3/8Rc
|
1/2Rc
|
| Proof pressure |
1.5MPa
|
| Max. operating pressure |
1.0MPa
|
| Ambient and fl uid temperature |
5~60oC
|
| Bowl guard |
Available
|
Dimensions
Specifi cations
| Model |
SFR-200
|
SFR-300
|
SFR-400
|
| Port size |
1/4Rc
|
3/8Rc
|
1/2Rc
|
| Pressure gauge port size |
1/8Rc
|
1/8Rc
|
1/8Rc
|
| Proof pressure |
1.5MPa
|
| Max. operating pressure |
1.0MPa
|
| Ambient and fl uid temperature |
5~60oC
|
| Bowl guard |
Available
|
|
|
