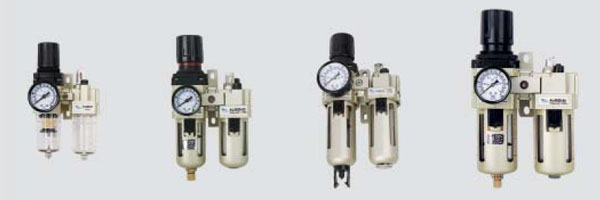

| Fluid |
Air
|
| Proof pressure |
1.5MPa(15kgf/cm2)
|
| Max. operating pressure |
1.0MPa(10kgf/cm2)
|
| Ambient and fl uid temperature |
5~60oC
|
| Nominal fi ltration rating |
5μm 25μm 50μm
|
| Recommended lubricant |
Class 1 turbine oil (ISO VG32)
|
| Bowl material |
PC K1300
|
| Bowl guard |
AC1010~2010(Not Available) AC3010~5010(Available)
|
| Set pressure range |
AC1010:0.05~0.7MPa(0.5~7kgf/cm2)
AC2010~5010:0.05~0.85MPa(0.5~8.5kgf/cm2)
|
| Regulator construction |
Relieving type
|
|

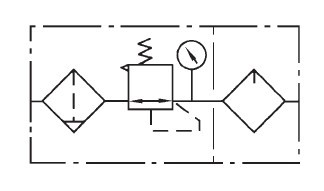

Model
|
Specifi cations
|
Accessories
|
|
Component
|
*Rated fl ow
(L/min)
|
**Port size
(G)
|
Pressure gauge
port size
|
Weight
(kg)
|
Bracket
(2PCS)
|
Pressure
gauge
|
|
Filter
|
Regulator
|
|
AC1010-M5
|
AW1000
|
AL1000
|
90
|
M5
|
1/16
|
0.22
|
Y10L
|
G27-10-R1
|
|
AC2010-01
|
AW2000
|
AL2000
|
500
|
1/8
|
1/8
|
0.66
|
Y20L
|
G36-10-01
|
|
AC2010-02
|
1/4
|
|
AC3010-02
|
AW3000
|
AL3000
|
1700
|
1/4
|
1/8
|
0.98
|
Y30L
|
|
AC3010-03
|
3/8
|
|
AC4010-03
|
AW3000
|
AL4000
|
3000
|
3/8
|
1/4
|
1.93
|
Y30L
|
|
AC4010-04
|
1/2
|
|
AC4010-06
|
AW4000-06
|
AL4000-06
|
3000
|
3/4
|
1/4
|
1.99
|
Y50L
|
G46-10-02
|
|
AC5010-06
|
AW5000
|
AL5000
|
4000
|
3/4
|
1/4
|
3.20
|
Y60L
|
|
AC5010-10
|
1
|
*Under the circumstance that the inlet pressure is 0.7MPa (7.1kgf/cm2)and the set pressure is 0.5MPa(5.1kgf/cm2)
** Rc and NPT port sizes are available.
|

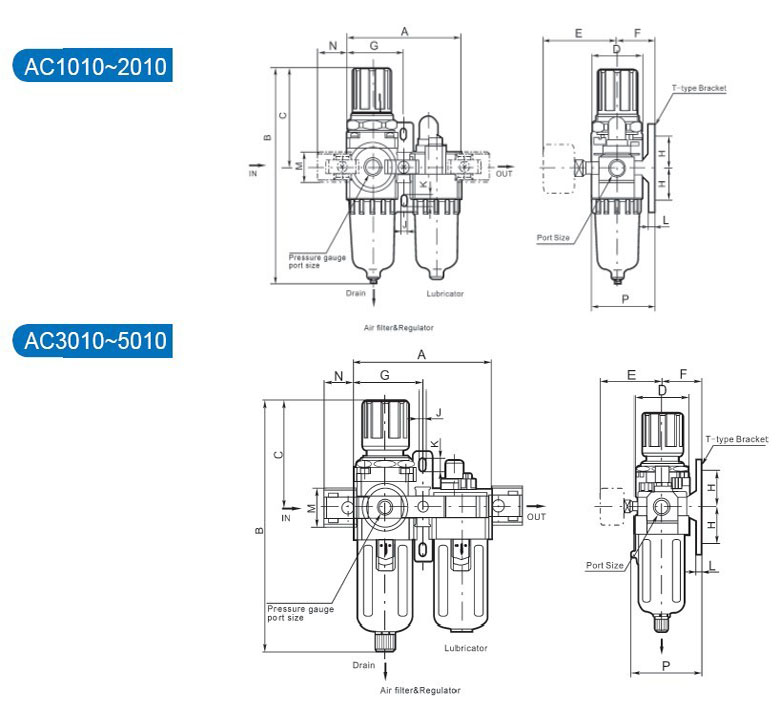

Model
|
Port size G
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
J
|
K
|
L
|
M
|
N
|
P
|
|
AC1010
|
M5
|
58
|
109.5
|
50.5
|
25
|
26
|
25
|
29
|
20
|
4.5
|
7.5
|
5
|
17.5
|
16
|
38.5
|
|
AC2010
|
1/8~1/4
|
90
|
164.5
|
78
|
40
|
56.8
|
30
|
45
|
24
|
5.5
|
8.5
|
5
|
22
|
23
|
50
|
|
AC3010
|
1/4~3/8
|
117
|
211
|
92.5
|
53
|
60.8
|
41
|
58.5
|
35
|
7
|
11
|
7
|
34.2
|
26
|
70.5
|
|
AC4010
|
3/8~1/2
|
154
|
262
|
112
|
70
|
70.5
|
50
|
77
|
40
|
9
|
13
|
7
|
42.2
|
33
|
88
|
|
AC4010-06
|
3/4
|
164
|
267
|
114
|
70
|
70.5
|
50
|
82
|
40
|
9
|
13
|
7
|
46.2
|
36
|
88
|
|
AC5010
|
3/4~1
|
195
|
338
|
116
|
90
|
75.5
|
69.8
|
97.5
|
50
|
12
|
16
|
10.5
|
55.2
|
40
|
115
|
|
|
