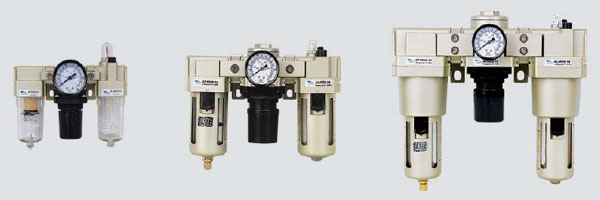

| Fluid |
Air
|
| Proof pressure |
1.5MPa(15kgf/cm2)
|
| Max. operating pressure |
1.0MPa(10kgf/cm2)
|
| Ambient and fl uid temperature |
5~60oC
|
| Nominal fi ltration rating |
5μm 25μm 50μm
|
| Recommended lubricant |
Class 1 turbine oil (ISO VG32)
|
| Bowl material |
PC K1300
|
| Bowl guard |
AC1000~2000(Not available)
|
| Set pressure range |
AC1000:0.05~0.7MPa(0.5~7kgf/cm2) AC2000~5000:0.05~0.85MPa(0.5~8.5kgf/cm2)
|
| Regulator construction |
Relieving type
|
|

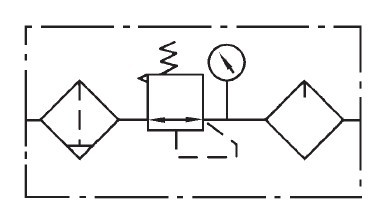

Model
|
Specifi cations
|
Accessories
|
|
Component
|
*Rated fl ow
(L/min)
|
**Port size
(G)
|
Pressure gauge
port size
|
Weight
(kg)
|
Bracket
(2PCS)
|
Pressure
gauge
|
|
Filter
|
Regulator
|
Lubricator
|
|
AC1000-M5
|
AF1000
|
AR1000
|
AL1000
|
90
|
M5
|
1/16
|
0.26
|
Y10L
|
G27-10-R1
|
|
AC2000-01
|
AF2000
|
AR2000
|
AL2000
|
500
|
1/8
|
1/8
|
0.74
|
Y20L
|
G36-10-01
|
|
AC2000-02
|
1/4
|
|
AC2500-02
|
AF3000
|
AR2500
|
AL3000
|
1500
|
1/4
|
1/8
|
1.04
|
Y30L
|
|
AC2500-03
|
3/8
|
|
AC3000-02
|
AF3000
|
AR3000
|
AL3000
|
2000
|
1/4
|
1/8
|
1.18
|
Y30L
|
|
AC3000-03
|
3/8
|
|
AC4000-03
|
AF4000
|
AR4000
|
AL4000
|
4000
|
3/8
|
1/4
|
2.14
|
Y40L
|
G46-10-02
|
|
AC4000-04
|
1/2
|
|
AC4000-06
|
AF4000-06
|
AR4000-06
|
AL4000-06
|
4500
|
3/4
|
1/4
|
2.47
|
Y50L
|
|
AC5000-06
|
AF5000
|
AR5000
|
AL5000
|
5000
|
3/4
|
1/4
|
3.82
|
Y60L
|
|
AC5000-10
|
1
|
*Under the circumstance that the inlet pressure is 0.7MPa (7.1kgf/cm2) and the set pressure is 0.5MPa(5.1kgf/cm2)
** Rc and NPT port sizes are available.
|

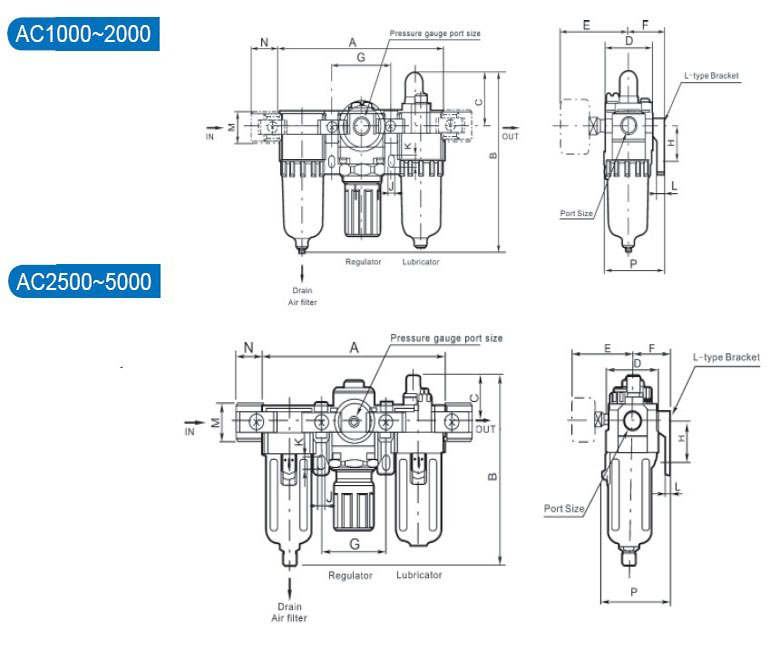

Model
|
Port Size G
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
J
|
K
|
L
|
M
|
N
|
P
|
|
AC1000
|
M5
|
91
|
84.5
|
25.5
|
25
|
26
|
25
|
33
|
20
|
4.5
|
7.5
|
5
|
17.5
|
16
|
38.5
|
|
AC2000
|
1/8~1/4
|
140
|
125
|
38
|
40
|
56.8
|
30
|
50
|
24
|
5.5
|
8.5
|
5
|
22
|
23
|
50
|
|
AC2500
|
1/4~3/8
|
181
|
156.5
|
38
|
53
|
60.8
|
41
|
64
|
35
|
7
|
11
|
7
|
34.2
|
26
|
70.5
|
|
AC3000
|
1/4~3/8
|
181
|
156.5
|
38
|
53
|
60.8
|
41
|
64
|
35
|
7
|
11
|
7
|
34.2
|
26
|
70.5
|
|
AC4000
|
3/8~1/2
|
238
|
191.5
|
41
|
70
|
65.5
|
50
|
84
|
40
|
9
|
13
|
7
|
42.2
|
33
|
88
|
|
AC4000-06
|
3/4
|
253
|
193
|
40.5
|
70
|
69.5
|
50
|
89
|
40
|
9
|
13
|
7
|
46.2
|
36
|
88
|
|
AC5000
|
3/4~1
|
300
|
271.5
|
48
|
90
|
75.5
|
69.8
|
105
|
50
|
12
|
16
|
10.5
|
55.2
|
40
|
115
|
|
|
