Home > Products
Air Filter

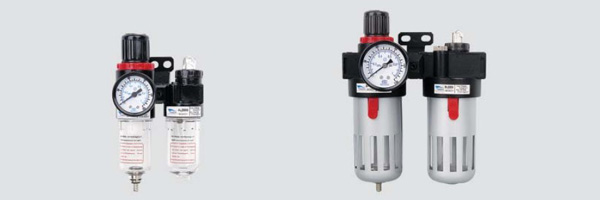

AFC,BFC Series FR.L Unit
Add to cart
Symbol

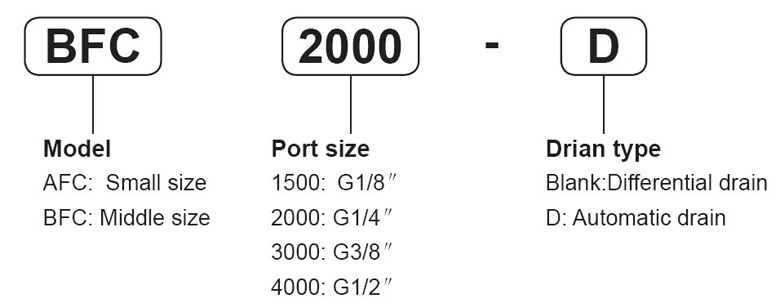

Ordering code



Specifications
  Model
AFC1500
AFC2000
BFC2000
BFC3000
BFC4000
  Fluid
Air
  Port size
G1/8″
G1/4″
G1/4″
G3/8″
G1/2″
  Filtering grade
40μ
  Pressure range
0.05 ~ 0.85MPa
  Max. pressure
0.95MPa
  Proof pressure
1.5MPa
  Operating temperature
5 ~ 60o
  Drain bowl capacity
15 cc
60 cc
  Oil bowl capacity
25 cc
90 cc
  Recommended lubricant
ISO VG 32 or Equivalent
  Weight
0.7 KG
0.9 KG
  Material Body
Aluminum die-cast
Bowl
PC IR2200
Bowl guard
-
Nylon,Iron
  Component Filter & Regulator
AFR1500
AFR2000
BFR2000
BFR3000
BFR4000
Lubricator
AL1500
AL2000
BL2000
BL3000
BL4000

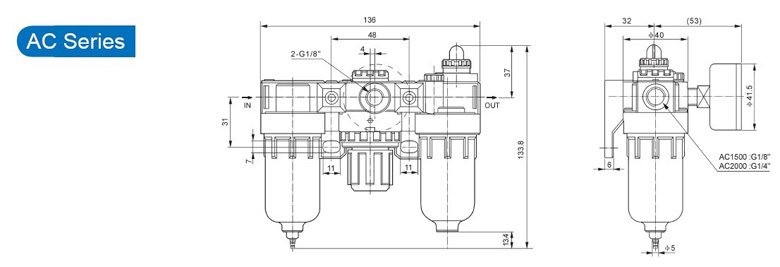

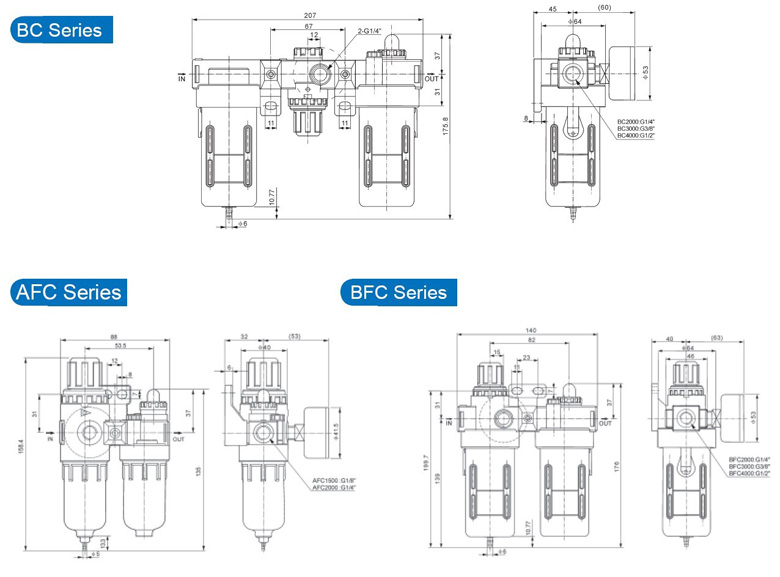

Dimensions
