| Model |
4V310-08 |
4V320-08 |
4V330C-08 |
4V330E-08 |
4V330P-08 |
4V310-10 |
4V320-10 |
4V330C-10 |
4V330E-10 |
4V330P-10 |

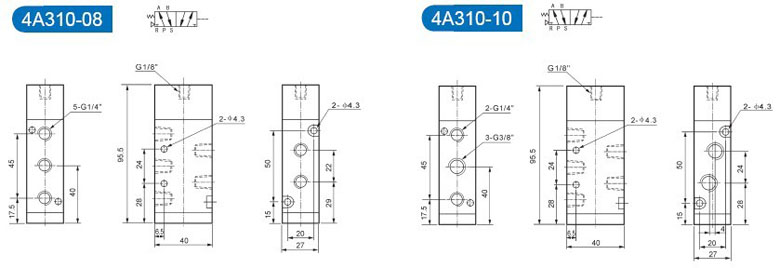

| 4A310-08 |
4A320-08 |
4A330C-08 |
4A330E-08 |
4A330P-08 |
4A310-10 |
4A320-10 |
4A330C-10 |
4A330E-10 |
4A330P-10 |
| Position and way NO. |
5/2 way |
5/3way |
5/2 way |
5/3 way |
| Effective area |
25mm2(CV=1.40) |
18mm2(CV=1.00) |
30mm2(CV=1.68) |
18mm2(CV=1.00) |
| Model |

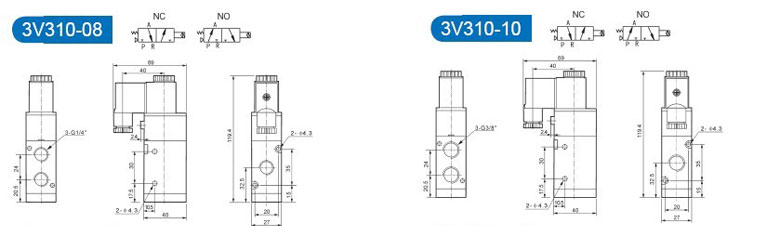

3V310-08 |
3V320-08 |

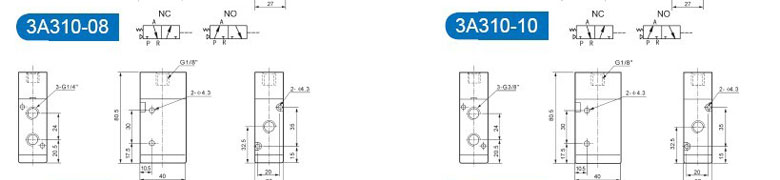

3A310-08 |

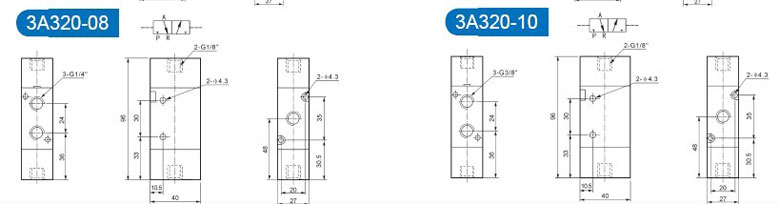

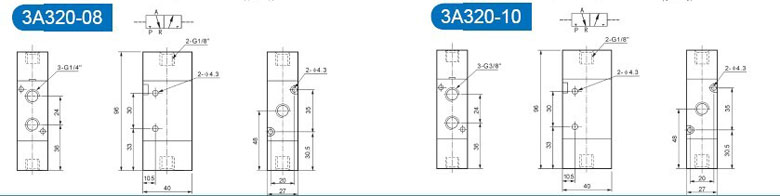

3A320-08 |
3V310-10 |
3V320-10 |
3A310-10 |
3A320-10 |
| Position and way NO. |
3/2 way |
3/2 way |
| Effective area |
25mm2(CV=1.40) |
30mm2(CV=1.68) |
| Port size |
Air inlet=Air outlet=Exhaust=G1/4″ |
Air inlet=Air outlet=G3/8″ Exhaust=G1/4″ |
| Fluid |
40 micron fi ltered air |
| Operation |
Inside pilot type |
| Operating pressure |
0.15~0.8MPa |
| Max. proof pressure |
1.2MPa |
| Temperature |
5~50oC |
| Allowable voltage |
±10% of rated voltage |
| Power consumption |
AAC: 4.5VA DC: 3W |
| Coil insulation & protection grade |
Class F.IP65 |
| Electrical entry |
Lead wire or connector |
| Highest action frequency |
5 cycle/second |
| Shortest excitation time |
0.05 second |
|
|
