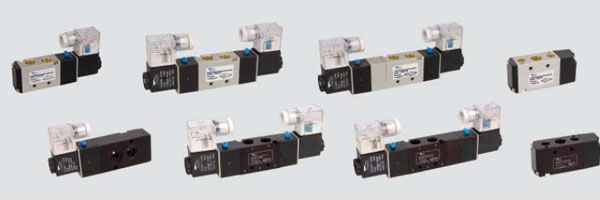

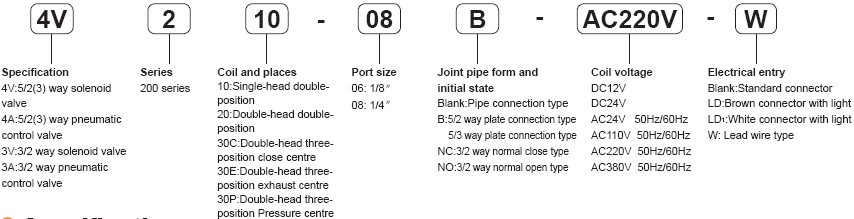

| Model |

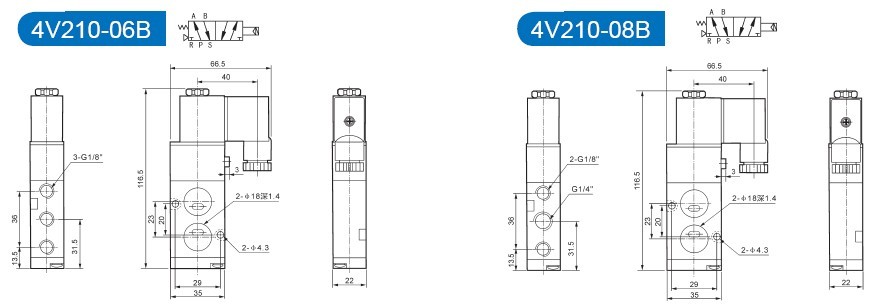

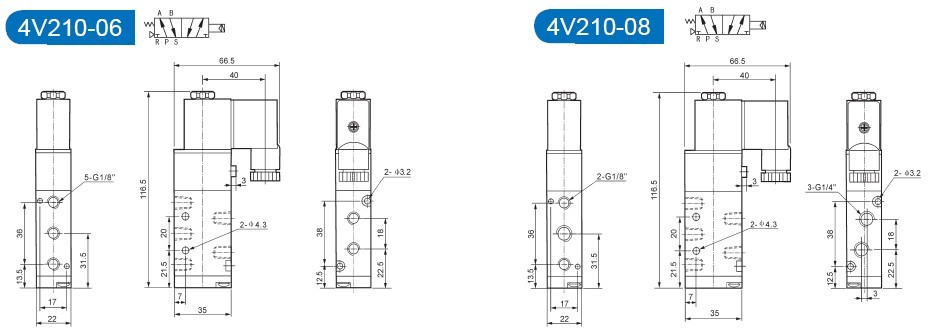

4V210-06 |

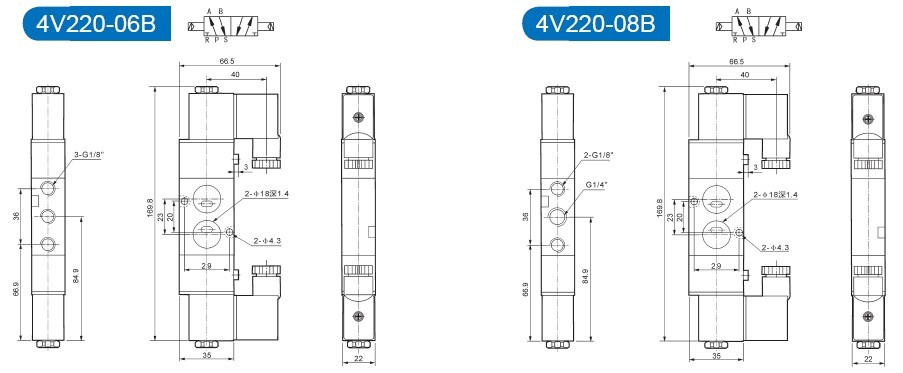

4V220-06 |

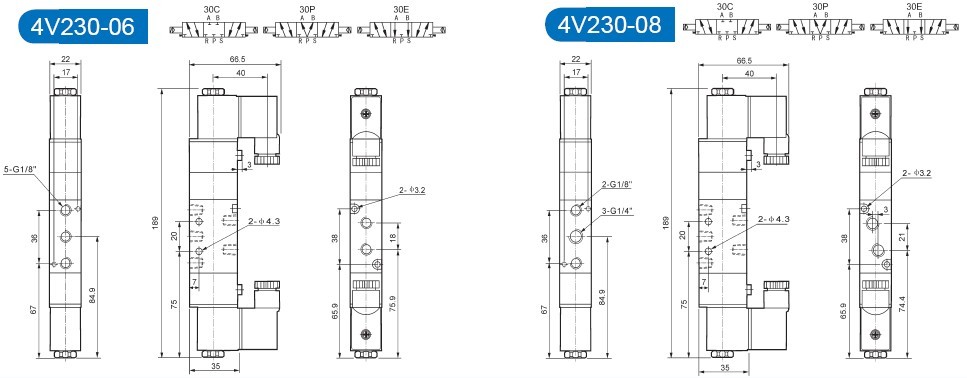

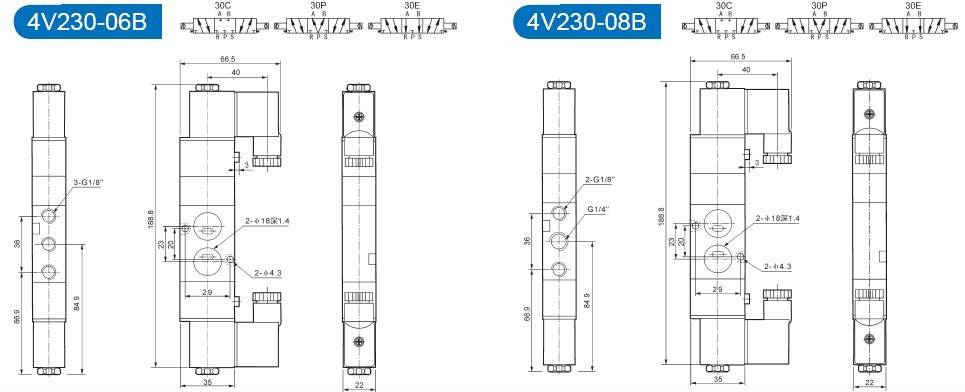

4V230C-06 |
4V230E-06 |
4V230P-06 |
4V210-08 |
4V220-08 |
4V230C-08 |
4V230E-08 |
4V230P-08 |

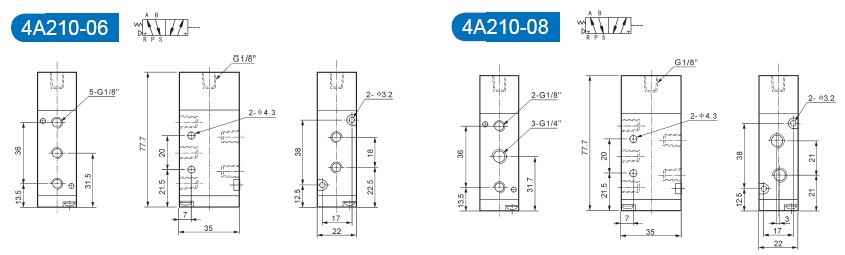

| 4A210-06 |
4A220-06 |

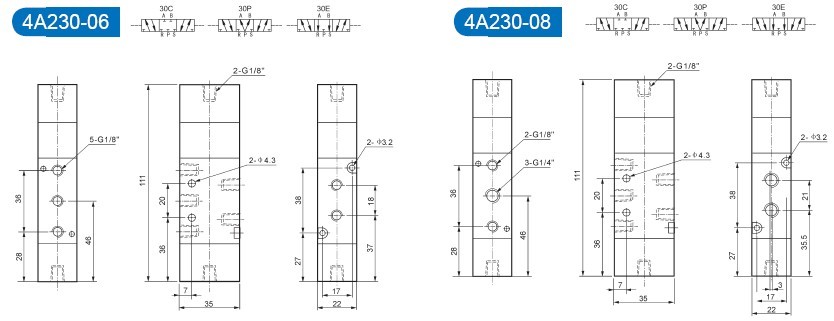

4A230C-06 |
4A230E-06 |
4A230P-06 |
4A210-08 |
4A220-08 |
4A230C-08 |
4A230E-08 |
4A230P-08 |
| Position and way NO. |
5/2 way |
5/3Five-way |
5/2 way |
5/3 way |
| Effective area |
14mm2(CV=0.78) |
12mm2(CV=0.67) |
16mm2(CV=0.89) |
12mm2(CV=0.67) |
| Model |

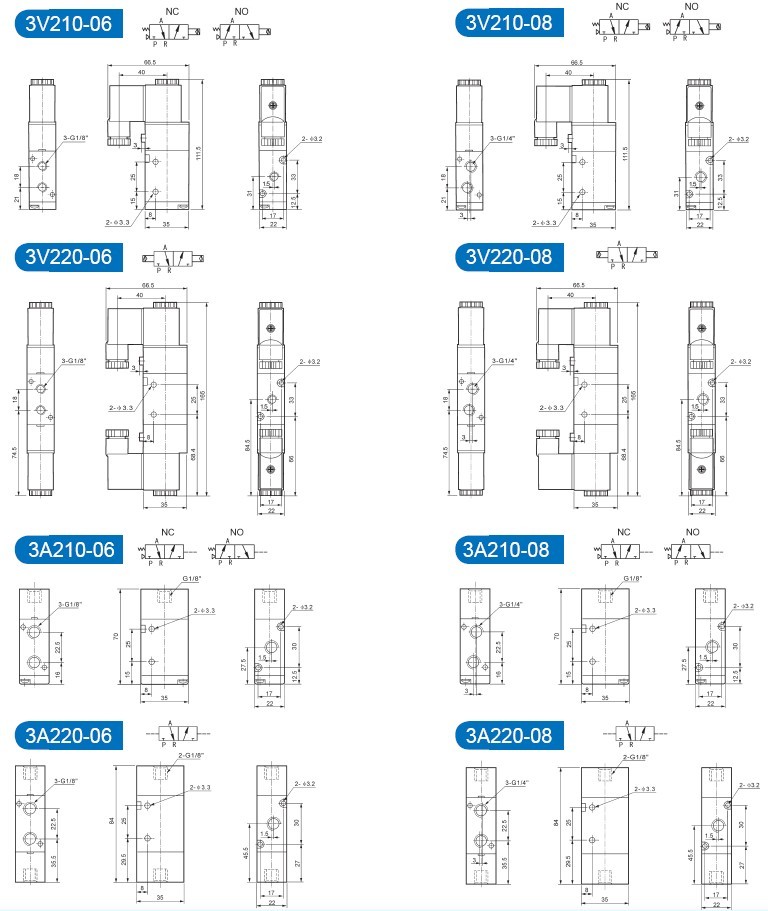

3V210-06 |
3V220-06 |
3A210-06 |
3A220-06 |
3V210-08 |
3V220-08 |
3A210-08 |
3A220-08 |
| Position and way NO. |
3/2 way |
3/2 way |
| Effective area |
14mm2(CV=0.78) |
16mm2(CV=0.89) |
| Port size |
Air inlet=Air outlet=Exhaust=G1/8″ |
Air inlet=Air outlet=G1/4″ Exhaust=G1/8″ |
| Fluid |
40 micron fi ltered air |
| Operation |
Inside pilot type |
| Operating pressure |
0.15~0.8MPa |
| Max. proof pressure |
1.2MPa |
| Temperature |
5~50oC |
| Allowable voltage |
±10% of rated voltage |
| Power consumption |
AAC: 4.5VA DC: 3W |
| Coil insulation & protection grade |
Class F.IP65 |
| Electrical entry |
Lead wire or connector |
| Highest action frequency |
5 cycle/second |
| Shortest excitation time |
0.05 second |
|
|
