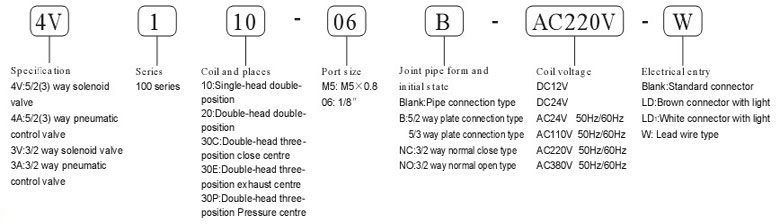

| Model |

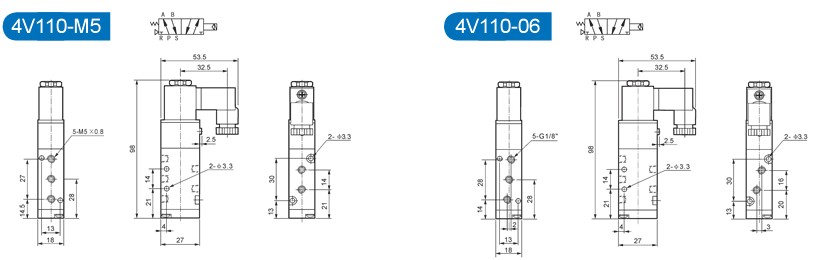

4V110-M5 |

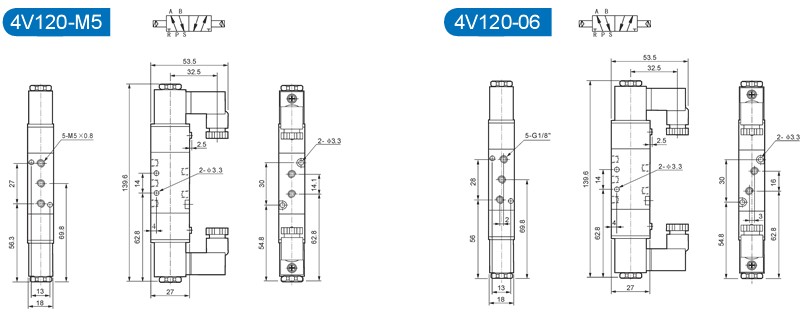

4V120-M5 |

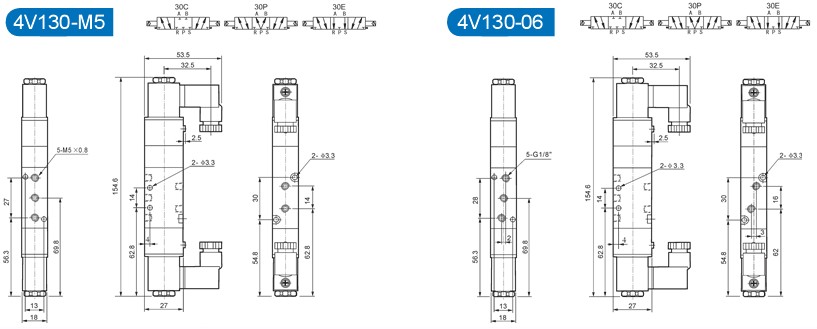

4V130C-M5 |
4V130E-M5 |
4V130P-M5 |
4V110-06 |
4V120-06 |
4V130C-06 |
4V130E-06 |
4V130P-06 |

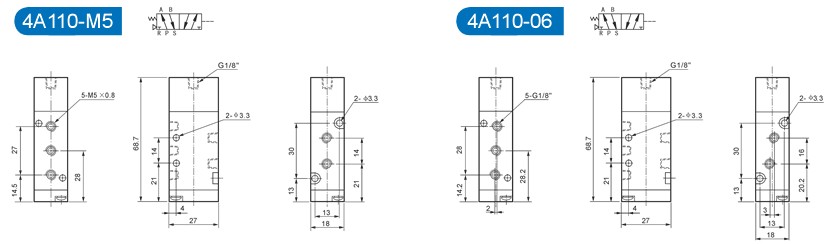

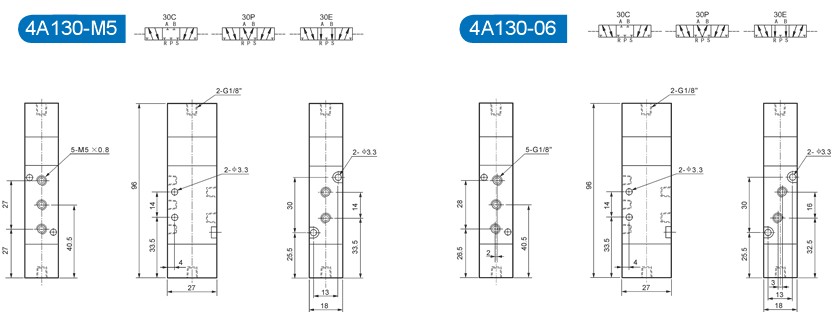

| 4A110-M5 |
4A120-M5 |
4A130C-M5 |
4A130E-M5 |
4A130P-M5 |
4A110-06 |
4A120-06 |
4A130C-06 |
4A130E-06 |
4A130P-06 |
| Position and way NO. |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
| Effective area |
10mm2(CV=0.56) |
7mm2(CV=0.40) |
12mm2(CV=0.67) |
9mm2(CV=0.5) |
| Model |

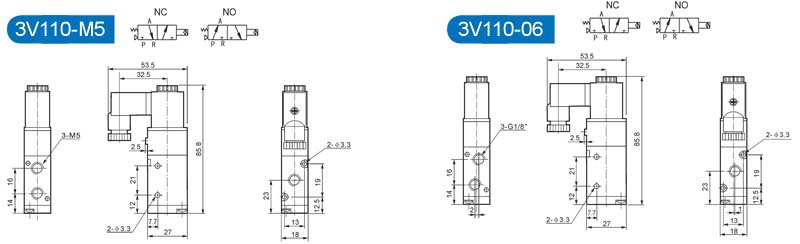

3V110-M5 |
3V120-M5 |

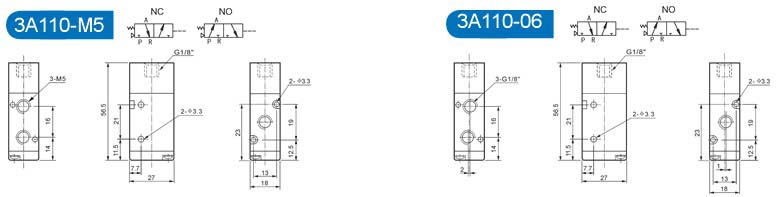

3A110-M5 |
3A120-M5 |
3V110-06 |
3V120-06 |
3A110-06 |
3A120-06 |
| Position and way NO. |
3/2 way |
3/2 way |
| Effective area |
10mm2(CV=0.56) |
12mm2(CV=0.67) |
| Port size |
Air inlet=Air outlet=Exhaust=M5*0.8 |
Air inlet=Air outlet=Exhaust=G1/1″ |
| Fluid |
40 micron filtered air |
| Operation |
Inside pilot type |
| Operating pressure |
0.15~0.8MPa |
| Max. proof pressure |
1.2MPa |
| Temperature |
5~50oC |
| Allowable voltage |
±10% of rated voltage |
| Power consumption |
AC:2.5VA DC:2.5W |
| Coil insulation & protection grade |
Class F.IP65 |
| Electrical entry |
Lead wire or connector |
| Highest action frequency |
5 cycle/second |
| Shortest excitation time |
0.05 second |
|
|
