Home > Products
Solenoid Valve

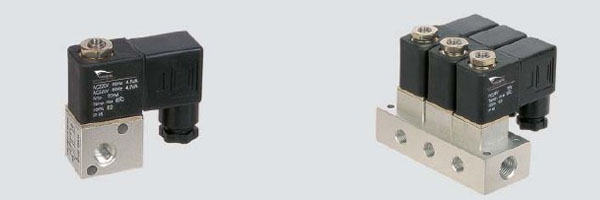

3V1 series solenoid valve
Add to cart
Symbol

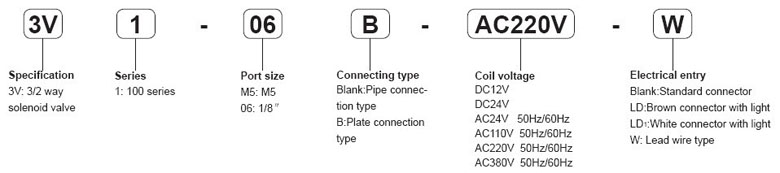

Ordering code



Specifications
Model
3V1-M5
3V1-06
Fluid
40 micron fi ltered air
Operation
Direct drive type
Port size
M5
1/8″
Ambient temperature
-10~+60o
Gas temperature
5~60o
Air outlet diameter
1.0mm
Lubrication
Not required
Operating pressure
0~0.8MPa
Proof presscure
1.2MPa
Power consumption
AC: 4.5VA DC: 3W
Protection grade
IP65
Electrical entry
Lead wire or connector type
Material of body
Aluminum alloy
Highest action frequency
10 cycle / second
Coil insulation
Class F
Allowable voltage
±10% of rated voltage
Shortest excitation time
0.05 second

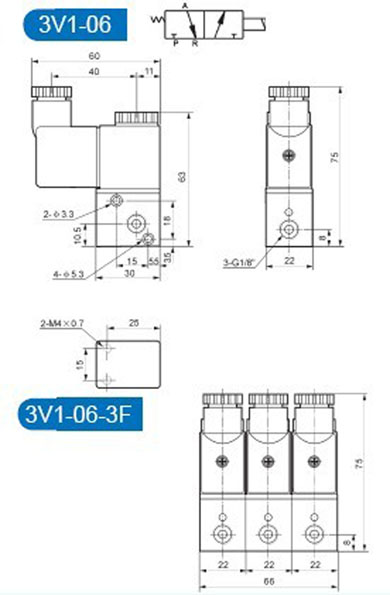

Dimensions
